Molex 5041892470

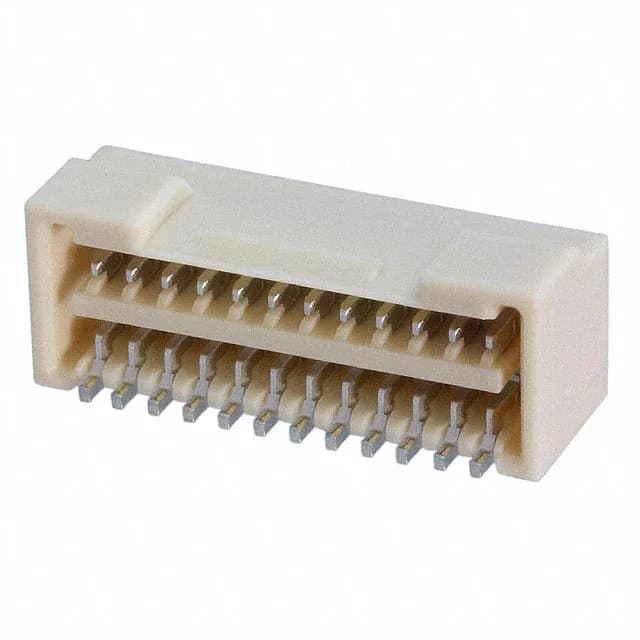

Molex 5041892470 Micro-Lock Header 24 Pos 1.25mm SMT Right

MPN 5041892470
Active

Molex Micro-Lock 504189 header, 5041892470, 24-position, 1.25mm pitch, SMT right-angle, shrouded 4-wall, latch lock, tin-plated male blade contacts, UL94 V-0 natural nylon.

$2.4100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMicro-Lock 504189
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5041892470 key specifications
ParameterValue
SeriesMicro-Lock 504189
TypeMale Blade
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLatch Lock
Contact materialBrass
Insulation colorNatural
Insulation height0.241\" (6.13mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)

All specifications

5041892470 additional specifications
ParameterValue
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeRectangular
Rows2
Pitch0.049\" (1.25mm)
Positions24
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - mating39.4µin (1.00µm)

Product details

24-circuit right-angle header for board-to-cable harnesses

The 5041892470: This is a 24-position, 1.25mm pitch header from the Molex Micro-Lock 504189 series, terminated by SMT solder to the board and mated to a cable receptacle via a latch lock.

Tin-plated contacts for cost-sensitive signal duty

The contact material is brass, and the contact shape is rectangular male blade — a standard signal contact form factor for this pitch class.

MPN
5041892470
