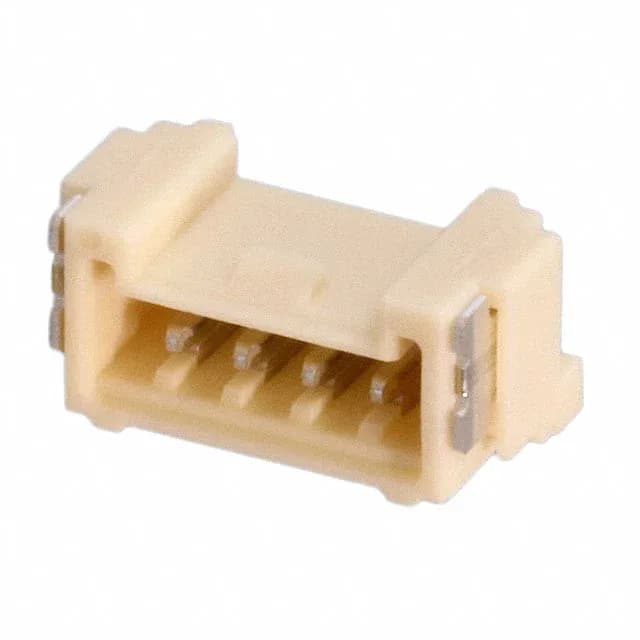

Molex 5041940470, Micro-Lock 504194 series, Board to Cable/Wire header, 4 positions, 1.25mm pitch, Surface Mount, Latch Lock, Tin plating, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Micro-Lock 504194 |
| Type | Male Blade |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.163\" (4.15mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Mated stacking heights | 7.3mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The 5041940470 is a 4-position single-row header from the Molex Micro-Lock 504194 series. It mates with the corresponding Micro-Lock receptacle (crimp housing) to form a wire-to-board connection.
The mated stack height is 7.3 mm, which sets the clearance between the PCB and the mating wire housing.
The pitch is 0.049 inches (1.25 mm).
The mating half is a Micro-Lock receptacle housing (crimp type) from the same 504194 series. The header's male blades insert into the receptacle's female terminals.
