Molex 5041940570 — Pin Headers

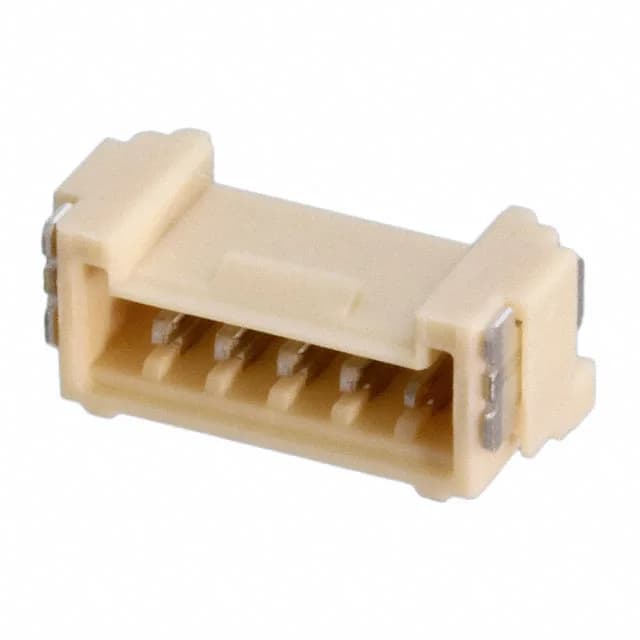

Molex 5041940570 Micro-Lock Header, 5 Pos, 1.25 mm, SMT

MPN5041940570
Active

Molex Micro-Lock 504194 series, 5041940570, board-to-cable/wire header, 5 positions, 1.25 mm pitch, SMT, shrouded 4-wall, latch lock, tin-plated male blade contacts, 7.3 mm mated stack height, UL94 V-0, ROHS3.

$1.3900Ref. price · indicative, final on quote
Molex 5041940570 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-Lock 504194
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5041940570 key specifications
ParameterValue
SeriesMicro-Lock 504194
TypeMale Blade
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Lock
Contact materialBrass
Insulation colorNatural
Insulation height0.163\" (4.15mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Mated stacking heights7.3mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

5041940570 additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeRectangular
Rows1
Pitch0.049\" (1.25mm)
Positions5
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

5-position, 1.25 mm pitch, latch-lock header

The 5041940570 is a 5-position, single-row, surface-mount header from the Molex Micro-Lock 504194 series, designed for board-to-cable/wire connections. Mated stack height is 7.3 mm, which sets the z-height budget for the mated assembly with the matching receptacle.

Solder retention and surface-mount termination

The header includes solder retention features to hold it in place during reflow, and the SMT termination suits automated pick-and-place assembly.
