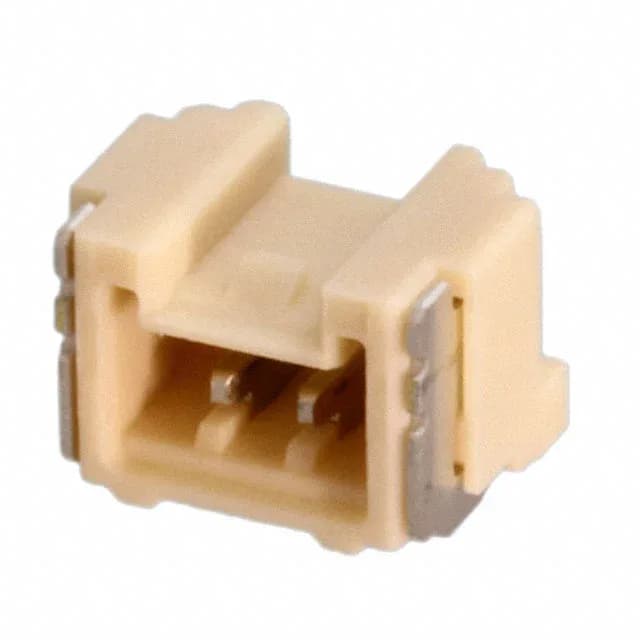

Molex Micro-Lock 504195 series, 5041950270, Board to Cable/Wire header, 2 positions, 1.25mm pitch, Surface Mount Right Angle, Tin plated contacts, Latch Lock, Solder Retention, UL94 V-0, ROHS3 Compliant, Active.
| Parameter | Value |
|---|---|
| Series | Micro-Lock 504195 |
| Type | Male Blade |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.163\" (4.15mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The 5041950270 is a 2-position, 1.25mm pitch header from Molex's Micro-Lock 504195 series, designed for board-to-cable/wire applications. Its right-angle SMT orientation and latch lock fastening make it a solid choice for space-constrained, vibration-prone assemblies where the cable needs to stay put.
The surface-mount, right-angle termination keeps the connector low-profile on the board edge.
The 5041950270 is a header (male pins). It mates with a Micro-Lock 504195 series receptacle housing (female terminals). The exact mating part depends on your wire gauge and locking preference — consult the series datasheet for compatible receptacle housings and crimp terminals.
Yes, it is ROHS3 compliant.
Yes, solder retention is listed as a feature. These features help anchor the header to the PCB during reflow and resist mechanical stress from the cable.
