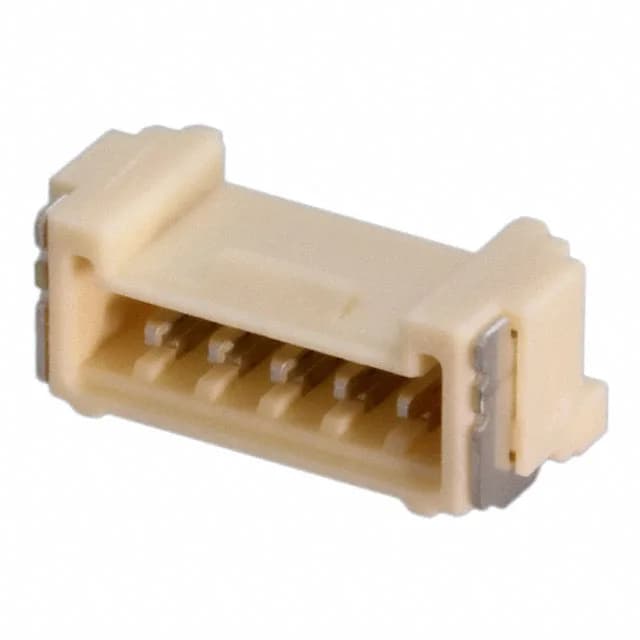

Molex Micro-Lock 504195 header, 1.25 mm pitch, 5 positions, SMT right-angle, shrouded 4-wall, latch lock, tin-plated male blade contacts, UL94 V-0 natural nylon housing.
| Parameter | Value |
|---|---|
| Series | Micro-Lock 504195 |
| Type | Male Blade |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.163\" (4.15mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Molex 5041950570 is a 5-position, single-row header from the Micro-Lock 504195 series, pitched at 1.25 mm and mounted surface-mount, right-angle. The shrouded 4-wall housing and latch lock give it a positive retention that resists vibration better than a standard friction-lock header.
The mating half is a Micro-Lock 504195 receptacle housing (order code 504195-series) with the corresponding crimp terminal. The latch lock on this header engages the receptacle's locking ramp.
Yes, 5041950570 is ROHS3 compliant per the manufacturer's status.
