Molex 5046930401

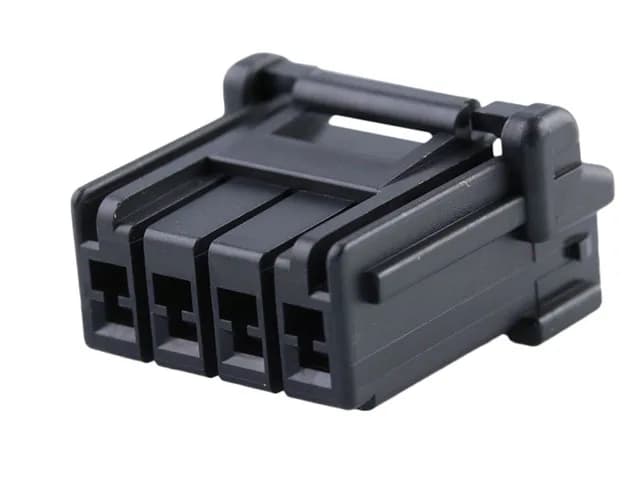

Molex CP-3.3 5046930401 Receptacle Housing, 4 Position

MPN 5046930401
Active

Molex CP-3.3 504693 series receptacle housing, 5046930401, 4 positions, 1 row, 3.30mm pitch, female socket contacts, crimp termination, free hanging, black PBT, -40°C to 105°C.

$0.4800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesCP-3.3 504693
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5046930401 specifications
ParameterValue
SeriesCP-3.3 504693
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.130\" (3.30mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions4

Product details

What This Housing Needs Before It Works

The Molex 5046930401 is a 4-circuit, single-row receptacle housing from the CP-3.3 504693 series. The critical note on this listing: contacts are not included. You order the housing and the crimp terminals separately — the Molex CP-3.3 female socket terminal (order code 5031490400 or equivalent) is the recommended mate.

Mating Half and Wire Prep

This receptacle mates with the CP-3.3 single-row header (male pin) of the same 4-circuit count and 3.30 mm pitch. The header is a through-hole PCB-mount part — the housing slides on and the latch holder engages. For the wire side, you need the female crimp terminals (sold separately), a hand crimp tool, and wire in the 20-24 AWG range. The crimp termination means you can replace individual contacts in the field without desoldering — useful when a wire gets pulled or chafed in a harness.

MPN
5046930401
