31-position 0.30mm pitch FPC interconnect

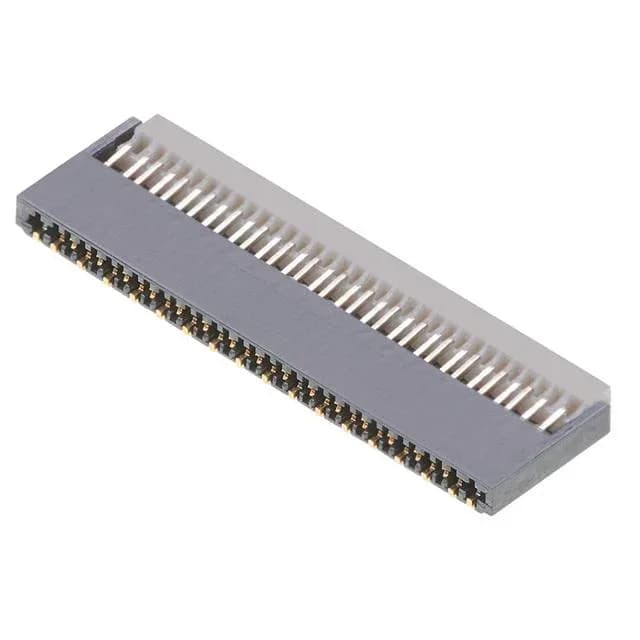

The Molex 5047543100 is a 31-position FPC connector from the BackFlip, Easy-On LA75 504754 series, on a tight 0.012" (0.30mm) pitch. It terminates to a 0.20mm-thick FPC with tabbed ends, using a flip-lock and backlock actuator that secures the cable without a secondary latch. Rated 0.2A per contact at 50V, this connector is intended for low-current signal paths in compact consumer or portable electronics.
Right-angle SMT footprint and gold plating
Surface-mount, right-angle orientation places the FPC parallel to the board, keeping the mated height above board at 0.030" (0.75mm). Gold contact finish at 3.94µin (0.10µm) over copper alloy provides corrosion resistance for the rated 10 mating cycles.
