Molex 5047543320 — FFC / FPC Cable Assemblies

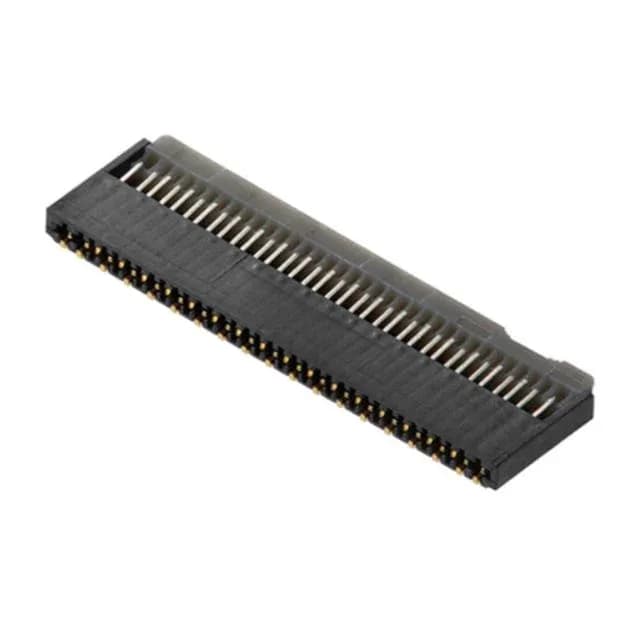

Molex 5047543320 FPC Connector 33 Pos 0.30mm Pitch

MPN5047543320
Active

Molex BackFlip Easy-On LA75 504754 series FPC connector, 33 positions, 0.012" (0.30mm) pitch, 0.2A, gold contacts, SMT right-angle, flip lock backlock actuator, tape and reel.

$1.7200Ref. price · indicative, final on quote
Molex 5047543320 datasheet (PDF)
RoHSROHS3 Compliant
SeriesBackFlip, Easy-On LA75 504754
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5047543320 key specifications
ParameterValue
SeriesBackFlip, Easy-On LA75 504754
MountingSurface Mount, Right Angle
Cable end typeTapered
Flat flex typeFPC
Connector (Contact type)Contacts, Top and Bottom
Voltage rating50V
Current rating0.2A
Operating temperature-40°C ~ 85°C
Housing colorBlack
Actuator colorGray
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

5047543320 additional specifications
ParameterValue
Actuator materialPolyamide (PA), Nylon, Glass Filled
Height above board0.030\" (0.75mm)
Material flammability ratingUL94 V-0
Pitch0.012\" (0.30mm)
PackageTape & Reel (TR) Cut Tape (CT)
TerminationSolder
Mating cycles10
Contact finishGold
Locking featureFlip Lock, Backlock
FFC, FCB thickness0.20mm
Positions33
Contact finish thickness3.94µin (0.10µm)

Product details

0.30 mm pitch, 33 positions — tight FPC interconnect

Molex 5047543320 is a 33-position FPC connector from the BackFlip Easy-On LA75 series, built on a 0.012" (0.30mm) pitch. The connector is rated 0.2A per contact, which puts it firmly in signal-only territory — no power delivery through these pins. The gold contact finish (3.94µin) and top-and-bottom contact arrangement handle fine-pitch FPC signals reliably for low-current applications.

Right-angle SMT, flip-lock actuator

The flip lock / backlock actuator secures the FPC with a positive latch — no secondary hardware needed.

Frequently asked questions

What is the pitch of Molex 5047543320?

The pitch is 0.012" (0.30mm). This is the tightest pitch in the BackFlip Easy-On LA75 series and determines the FPC trace pitch and board footprint.

Is Molex 5047543320 RoHS compliant?

Yes, it is ROHS3 Compliant.

What is the mounting type of 5047543320?

Surface Mount, Right Angle — the connector sits perpendicular to the PCB, with SMT solder tails.

How many mating cycles does 5047543320 support?

10 mating cycles. This is a low-cycle connector, suited for one-time or infrequent mating — not for repeated field disconnect.
