0.30 mm pitch, 35 circuits — the tightest FPC footprint in the LA75 family

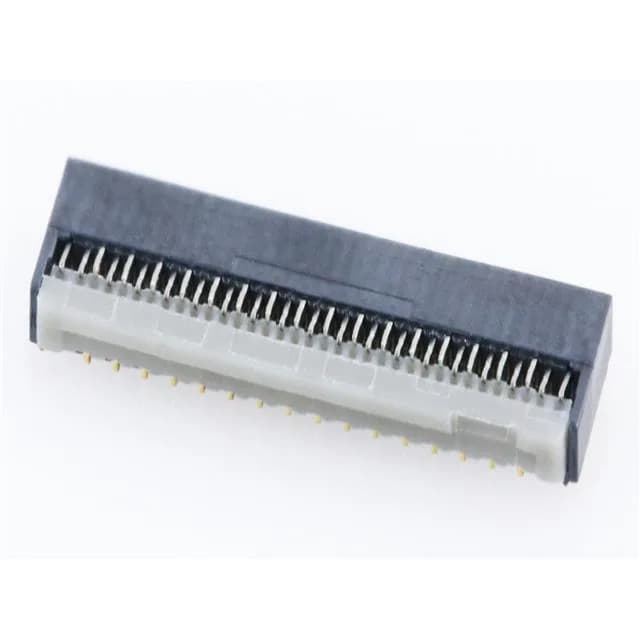

The 5047543520 is a 35-position, 0.30 mm pitch FPC connector from Molex's BackFlip Easy-On LA75 series. The gold-plated contacts (3.94 µin gold over nickel) and 10 mating cycles confirm this is a one-time-mate or very infrequent-disconnect part, typical for a display or camera module interconnect inside a sealed assembly.
Right-angle SMT with flip-lock actuation — board assembly checklist
The connector is a surface-mount, right-angle design with a flip-lock and backlock actuator. The actuator color is gray, the housing is black. The contacts are top and bottom, so the FPC can be inserted with the conductor pattern facing either side — the connector doesn't force a specific insertion orientation. The housing is glass-filled LCP (UL94 V-0), the actuator is glass-filled nylon.
