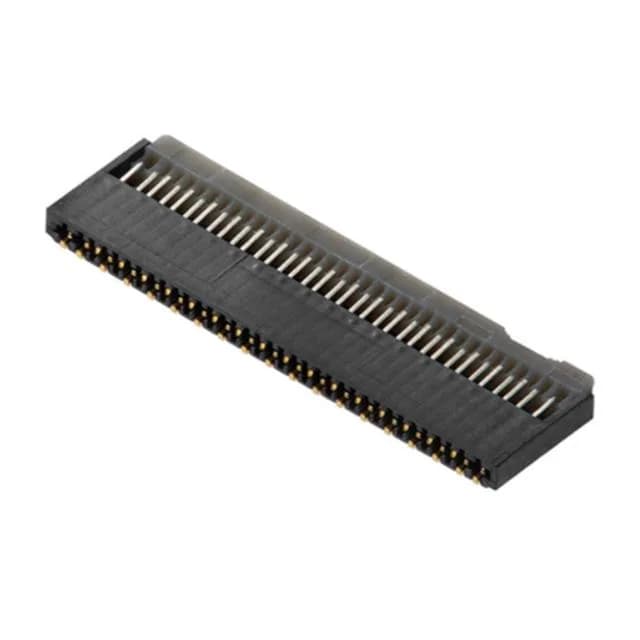

Molex 5047543900 39-Pos FPC Connector 0.30mm Pitch

MPN5047543900
Active

Molex, series BackFlip Easy-On LA75 504754, FPC connector, 39 circuits, 0.012" (0.30mm) pitch, surface mount right-angle, gold contact finish, flip-lock backlock actuator, 0.2A per contact, 50V rating.

$2.2400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBackFlip, Easy-On LA75 504754
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5047543900 key specifications
ParameterValue
SeriesBackFlip, Easy-On LA75 504754
MountingSurface Mount, Right Angle
Cable end typeTabbed
Flat flex typeFPC
Connector (Contact type)Contacts, Top and Bottom
Voltage rating50V
Current rating0.2A
Operating temperature-40°C ~ 85°C
Housing colorBlack
Actuator colorGray
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

5047543900 additional specifications
ParameterValue
Actuator materialPolyamide (PA), Nylon, Glass Filled
Height above board0.030\" (0.75mm)
Material flammability ratingUL94 V-0
Pitch0.012\" (0.30mm)
PackageTape & Reel (TR) Cut Tape (CT)
TerminationSolder
Mating cycles10
Contact finishGold
Locking featureFlip Lock, Backlock
FFC, FCB thickness0.20mm
Positions39
Contact finish thickness3.94µin (0.10µm)

Product details

The 5047543900 is a 39-position FPC connector from the Molex BackFlip / Easy-On LA75 504754 series, built for high-density board-edge interconnect at a 0.012" (0.30mm) pitch. Gold-plated contacts on both top and bottom sides mate with a 0.20mm-thick tabbed FPC, and the flip-lock / backlock actuator secures the cable without needing a secondary latch. The housing is black LCP rated UL94 V-0, and the actuator is gray glass-filled nylon.

What the 0.2A rating means for your circuit

Rated 0.2A per contact at 50V — this is a signal-only connector. The 0.30mm pitch and thin 0.10µm gold flash limit current capacity; don't plan to carry power through it. The 10 mating cycles confirm it's designed for one-time assembly or occasional service, not repeated field disconnect.

Frequently asked questions

Does 5047543900 have a backlock or flip-lock feature?

Yes, the locking feature is listed as Flip Lock, Backlock. The actuator holds the FPC in place without a secondary latch.

What is the pitch of 5047543900?

0.012" (0.30mm) pitch. This is the tightest pitch in the Easy-On LA75 series, demanding precise PCB layout.
