0.30 mm pitch, 41 positions, top and bottom contact

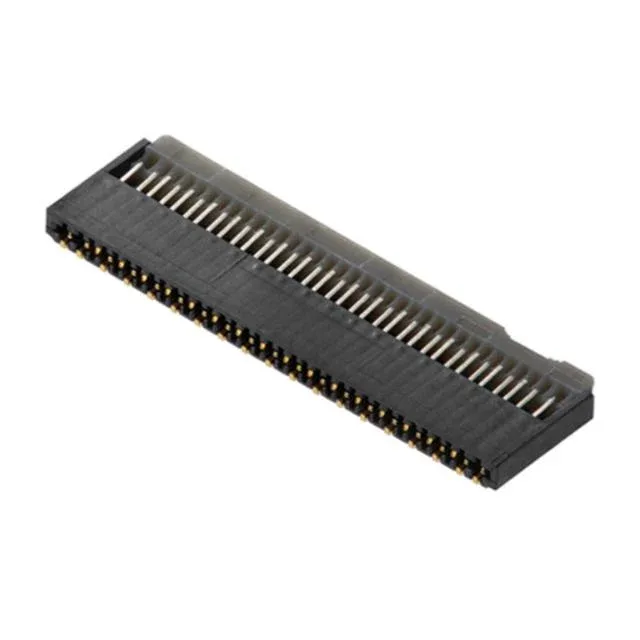

Molex 5047544100 is a 41-position FPC connector from the BackFlip, Easy-On LA75 504754 series, on 0.30 mm pitch. Rated 0.2 A per contact at 50 V, with gold plating (3.94 µin) on the contact area. The current is typical for this pitch; the gold gives a reliable connection over the rated 10 mating cycles.
Flip lock actuator and 0.20 mm FPC thickness
The flip lock with backlock design gives a positive tactile click when closed—no secondary latch needed. Accepts FPC thickness of 0.20 mm, which is the standard for 0.30 mm pitch cables. Housing is black LCP, glass-filled, rated UL94 V-0. The actuator is gray glass-filled nylon. The connector sits 0.75 mm above the board—a low profile for tight stacking.
