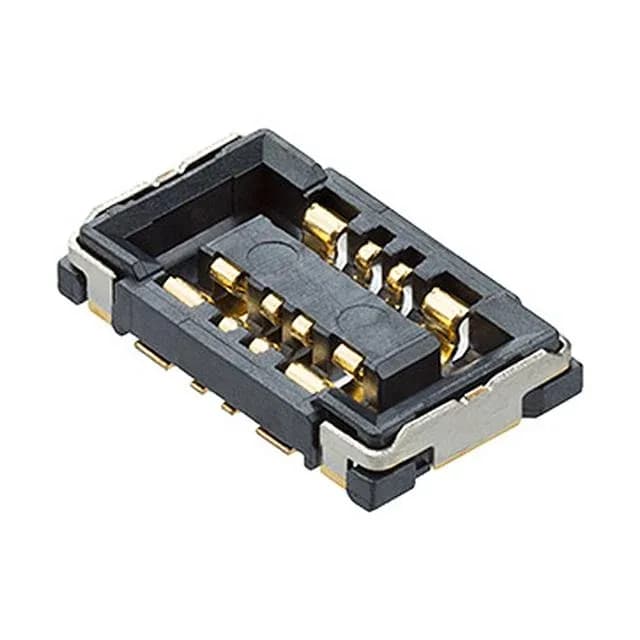

Molex SlimStack 505004 series receptacle, 0.016" (0.40mm) pitch, 8 positions (4 signal + 4 power), 2 rows, 0.8mm mated stacking height, SMT, gold contact finish, tape and reel.
| Parameter | Value |
|---|---|
| Series | SlimStack 505004 |
| Mounting | Surface Mount |
| Connector type | Receptacle, Center Strip Contacts |
| Height above board | 0.030\" (0.75mm) |
| Mated stacking heights | 0.8mm |
| Pitch | 0.016\" (0.40mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 8 (4 + 4 Power) |
Two rows of contacts split the 8 positions into 4 signal and 4 power circuits, a configuration that suits compact mezzanine cards where a separate power header would waste board real estate.
The 0.030" (0.75 mm) height above board and 0.8 mm mated stacking height lock the z-axis budget.
The mated stacking height is 0.8 mm, with a height above board of 0.030" (0.75 mm). These two dimensions define the z-axis clearance for the board pair.
