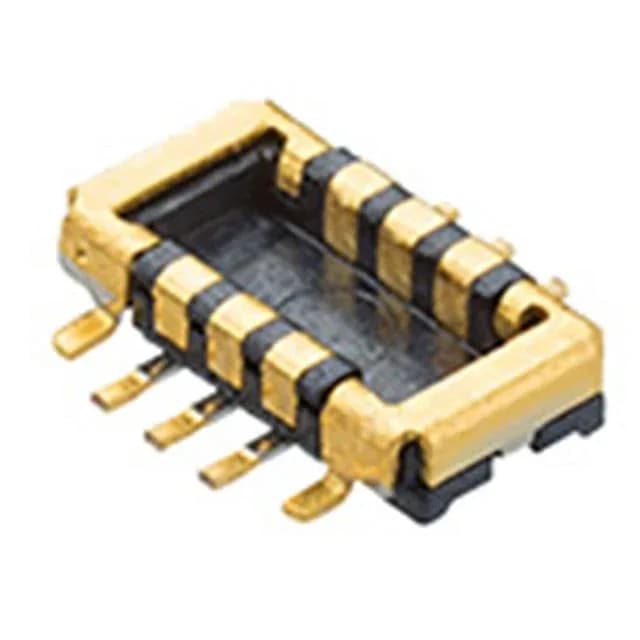

Molex 5050704822 SlimStack Plug, 48 Pos, 0.35 mm Pitch

MPN 5050704822
Active

Molex SlimStack 505070 series, Plug Outer Shroud Contacts, 48 positions, 2 rows, 0.014" (0.35mm) pitch, Surface Mount, Gold, 0.019" (0.48mm) height above board.

$0.5239 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSlimStack 505070
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5050704822 specifications
ParameterValue
SeriesSlimStack 505070
MountingSurface Mount
Connector typePlug, Outer Shroud Contacts
Height above board0.019\" (0.48mm)
Mated stacking heights0.6mm
Pitch0.014\" (0.35mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place, Solder Retention
Contact finishGold
Rows2
Positions48
Contact finish thickness4.00µin (0.100µm)

Product details

0.35 mm Pitch, 48-Position Mezzanine Plug

With a 0.014" (0.35mm) pitch and a mated stack height of 0.6mm, this connector suits high-density signal interconnects where board real estate is tight — think smartphone internals, wearable PCBs, or compact camera modules. The 0.019" (0.48mm) height above board keeps the profile low enough for sandwich-style assemblies. The dual-row arrangement packs 48 positions into a narrow footprint, demanding a fine-pitch PCB layout and a controlled reflow profile for the SMT solder joints. Pick-and-place features and solder retention pads are built into the body, so the part handles automated assembly without extra fixturing.

The mated stacking height of 0.6mm is the critical dimension for the mezzanine gap — your board stack design must clear this to avoid shorting components on the opposing board. The 0.48mm height above board on the plug side means the receptacle half (not listed here) will add the remaining height to reach the full 0.6mm stack. At 0.35 mm pitch, routing signals between the pads requires a PCB fab capable of 0.175 mm trace/space or finer. This is not a connector for coarse-pitch prototyping — it belongs in a production design with controlled impedance and fine-line etching.

The base product number 505070 covers the SlimStack family; the -4822 suffix identifies this specific 48-position, 0.35 mm pitch variant.
