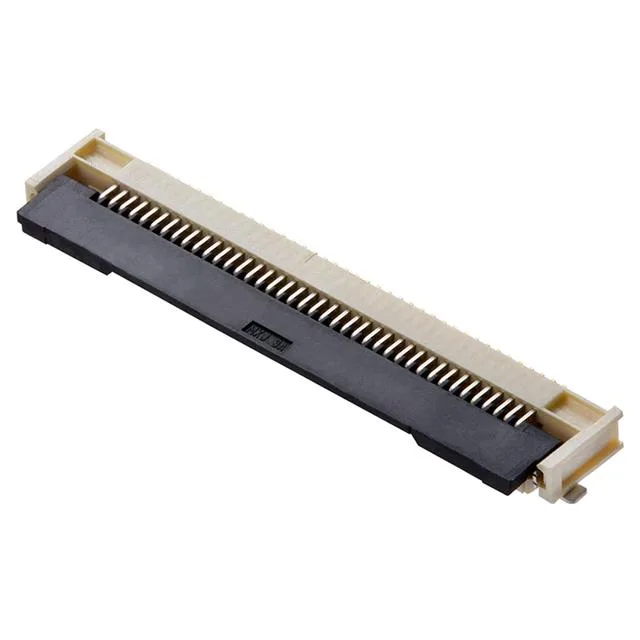

5051100497 Molex Easy-On FD19 FFC/FPC Connector, 4 Pos

MPN5051100497
Active

Molex Easy-On FD19 505110 series, 4-position FFC/FPC connector, 0.50 mm pitch, bottom-contact ZIF, flip-lock actuation, gold-plated contacts, rated 0.5 A at 50 V, surface-mount right-angle, tape-and-reel packaging.

$0.6800Ref. price · indicative, final on quote
5051100497 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5051100497 Technical Specifications
ParameterValue
SeriesEasy-On FD19 505110
Mounting typeSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-40°C ~ 150°C
Housing colorBeige
Actuator colorBlack
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP), Glass Filled
Actuator materialPolyamide (PA), Nylon, Glass Filled
Height above board0.075\" (1.90mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
TerminationSolder
Mating cycles20
Contact finishGold
Locking featureFlip Lock
Positions4
Contact finish thickness2.00µin (0.051µm)

Product details

Board-fit and routing for a 4-circuit ZIF

The 5051100497: This is a 4-position, 0.50 mm pitch FFC/FPC connector from the Molex Easy-On FD19 505110 series. The contacts are on the bottom side of the connector body, and the flip-lock actuator secures the cable without insertion force. The gold contact finish (2.00 µinch over copper alloy) supports up to 20 mating cycles, adequate for field-service cable swaps or production test points.

Mating cable and termination checklist

This connector accepts FFC or FPC cable with a straight cable end type. The bottom-contact configuration means the cable's conductive traces must face downward when inserted into the connector body. The flip lock clamps the cable after insertion — no secondary latch required. Termination is solder-only — the connector is surface-mount and supplied on tape-and-reel (cut tape available). The 0.50 mm pitch demands precise solder-paste stencil alignment; the board footprint should match the Molex recommended land pattern for the FD19 series.

Sourced through independent distribution channels.

Frequently asked questions

Where can I buy Molex 5051100497 and how do I get a price?

The 5051100497 is sourced to order through our distribution network. No stock-holding or immediate-shipment claim is made.

What FFC cable is compatible with 5051100497?

The connector accepts FFC or FPC cable with a straight cable end type. The bottom-contact orientation requires the cable's conductive traces to face downward when inserted.
