Molex Easy-On FD19 505110, 10-position FFC/FPC connector, 0.50 mm pitch, right-angle SMT, ZIF flip-lock, gold-plated bottom contacts, 0.5 A, 50 V, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Easy-On FD19 505110 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tabbed, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -40°C ~ 105°C |
| Housing color | Beige |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Actuator material | Polyamide (PA), Nylon, Glass Filled |
| Height above board | 0.075\" (1.90mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 25 |
| Contact finish | Gold |
| Locking feature | Flip Lock, Backlock |
| FFC, FCB thickness | 0.30mm |
| Positions | 10 |
| Contact finish thickness | 1.97µin (0.050µm) |

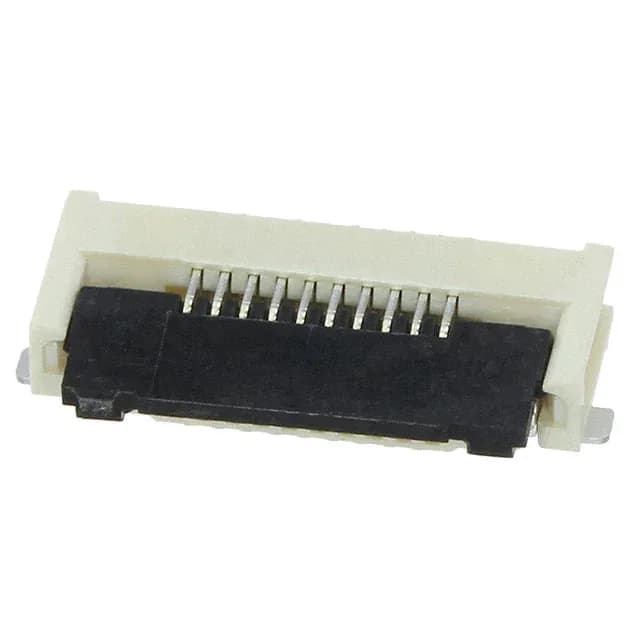

The 5051101092 is a 10-position FFC/FPC connector from Molex's Easy-On FD19 series, on a 0.020" (0.50 mm) pitch. It terminates with a zero-insertion-force (ZIF) flip-lock actuator, accepting 0.30 mm thick FFC with tabbed, tapered ends.
The bottom-contact design means the FFC pads face down toward the PCB.
