Molex Flexi-Latch 505148, FPC plug jacket, 2 circuits, 2 A, 50 V, latch lock, PBT glass-filled housing, UL94 V-0, -40°C to 125°C, black, bulk, contacts not included.
| Parameter | Value |
|---|---|
| Series | Flexi-Latch 505148 |
| Connector type | Plug Jacket |
| Flat flex type | FPC |
| Voltage rating | 50 V |
| Current rating | 2 A |
| Operating temperature | -40°C ~ 125°C |
| Housing color | Black |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Latch Lock |
| Positions | 2 |

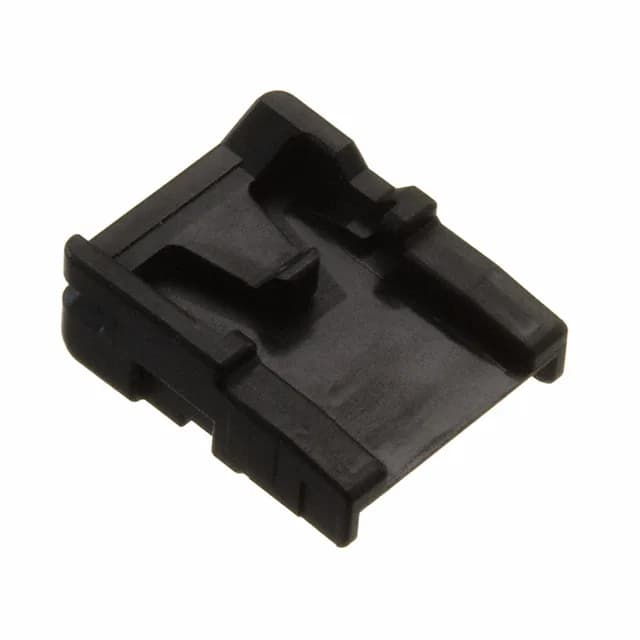

The 5051480208 is a 2-circuit FPC plug jacket from the Molex Flexi-Latch 505148 series. It is rated 2 A per contact at 50 V, with a latch lock that holds the mating pair together under vibration. This is a plug jacket only – contacts are not included.
Current pricing and lead time are confirmed at quote time – submit an RFQ for your volume.
No. The 5051480208 is a plug jacket only – contacts are not included.
Yes, it is ROHS3 compliant.
