Molex Flexi-Latch 505148 series, FPC plug jacket, 3 positions, 1 row, 2 A, 50 V, latch lock, PBT glass-filled housing, UL94 V-0, -40°C to 125°C, black, bulk, contacts not included.
| Parameter | Value |
|---|---|
| Series | Flexi-Latch 505148 |
| Connector type | Plug Jacket |
| Flat flex type | FPC |
| Voltage rating | 50 V |
| Current rating | 2 A |
| Operating temperature | -40°C ~ 125°C |
| Housing color | Black |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Latch Lock |
| Positions | 3 |

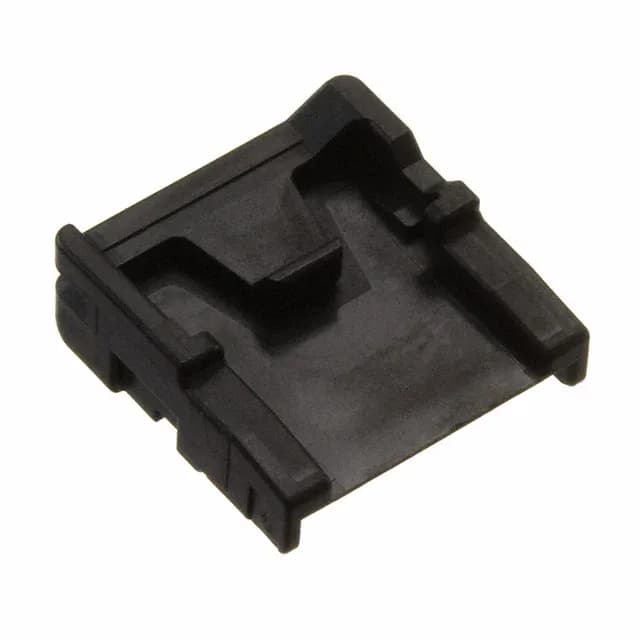

Molex 5051480308 is a Flexi-Latch 505148 series FPC plug jacket — a 3-position, single-row housing that holds the contacts for an FPC-to-board connection.
You order the plug jacket separately, then source the matching crimp terminals for your FPC. The base product number is 505148; the 0308 suffix denotes the 3-position variant.
No.
The evidence does not list a pitch value for this part.
