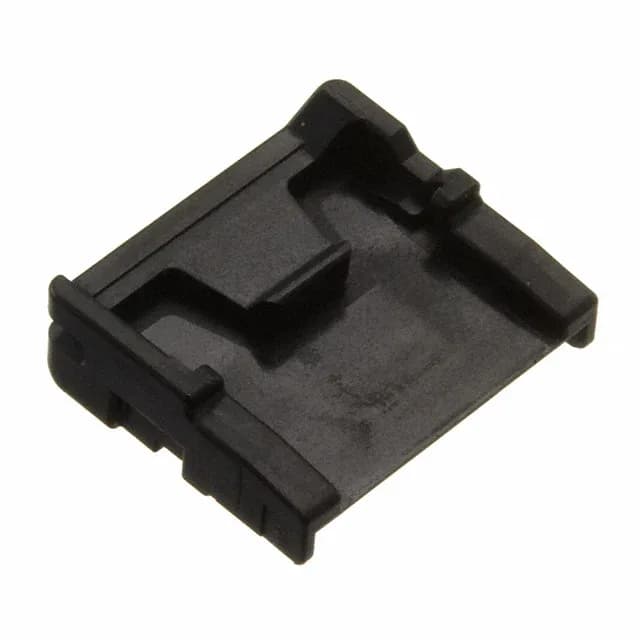

Molex Flexi-Latch 505148 series, 5051480408, FPC plug jacket, 4 circuits, single row, latch lock, 50 V, 2 A, -40°C to 125°C, UL94 V-0, contacts not included, bulk pack, black PBT housing.
| Parameter | Value |
|---|---|
| Series | Flexi-Latch 505148 |
| Connector type | Plug Jacket |
| Flat flex type | FPC |
| Voltage rating | 50 V |
| Current rating | 2 A |
| Operating temperature | -40°C ~ 125°C |
| Housing color | Black |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Latch Lock |
| Positions | 4 |
The 5051480408 is a 4-position, single-row FPC plug jacket from the Molex Flexi-Latch 505148 series.
ROHS3 compliant. Bulk packaging.
This plug jacket mates with a Flexi-Latch FPC receptacle (series 505148). Terminals are crimped to the FPC separately and inserted into the housing.
No.
It mates with a Flexi-Latch 505148 series FPC receptacle. The latch lock secures the pair.
