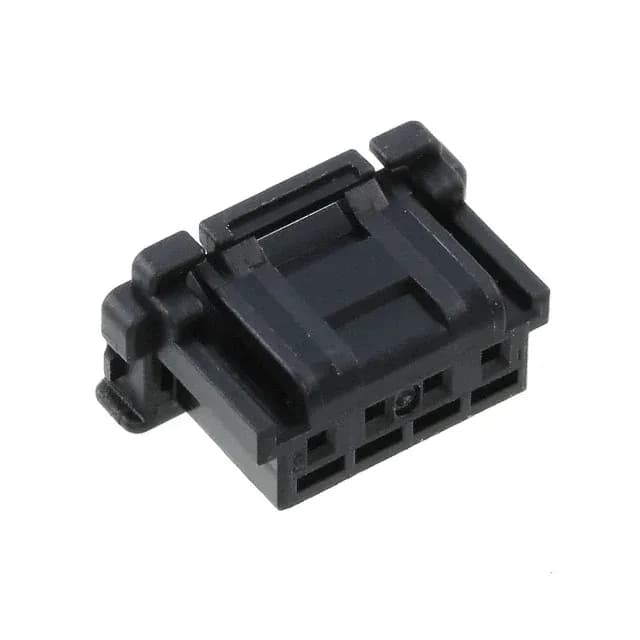

Molex DuraClik 505151 receptacle housing, 5051510400, 4 positions, 2.00mm pitch, single row, crimp termination, free-hanging, latch holder, -40°C to 125°C, black PA nylon, contacts not included.
| Parameter | Value |
|---|---|
| Series | DuraClik 505151 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 125°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 4 |
Termination is crimp-style: the housing accepts the DuraClik female crimp terminal (Molex order code 505151 series contact). The terminal is inserted into the cavity until the retention lance seats; the latch holder then slides forward to provide a terminal position assurance (TPA) lock. No secondary retention hardware is needed.
ROHS3 compliant.
No — the note 'Contacts Not Included' means the crimp terminals are ordered separately. You need the matching DuraClik female crimp contact (part of the 505151 series) to populate this housing.
Mates with the DuraClik 505151 series pin header at the same 2.00 mm pitch and single-row layout. The latch holder on this receptacle engages the header latch tines.
