Molex 5052702412 — Mezzanine & Stacking Connectors

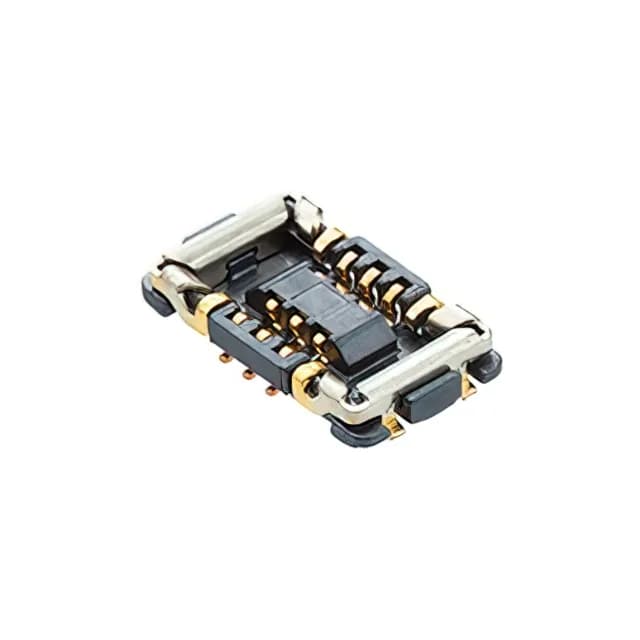

Molex 5052702412 SlimStack Armor Receptacle, 24 Pos

MPN5052702412
Active

Molex SlimStack Armor 505270 series receptacle, 24 positions, 0.35mm pitch, 2 rows, surface mount, gold contact finish, 0.8mm mated stack height.

$0.7100Ref. price · indicative, final on quote
Molex 5052702412 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSlimStack Armor 505270
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5052702412 specifications
ParameterValue
SeriesSlimStack Armor 505270
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.027\" (0.68mm)
Mated stacking heights0.8mm
Pitch0.014\" (0.35mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place, Solder Retention
Contact finishGold
Rows2
Positions24
Contact finish thickness4.00µin (0.100µm)

Product details

0.35mm Pitch, 24-Position Board-to-Board Receptacle

At a 0.014" (0.35mm) pitch with two rows of center strip contacts, it mates with the matching SlimStack Armor header to create a 0.8mm mated stack height — a tight Z-axis budget for compact portable electronics, wearable devices, or any assembly where board spacing is at a premium.

SMT Assembly Features: Pick-and-Place and Solder Retention

This receptacle is packaged in Tape & Reel and includes pick-and-place pads for vacuum-nozzle handling on the SMT line. Surface-mount termination with these features means the part is intended for automated high-volume assembly, not hand-soldering.

Frequently asked questions

What is the mated stacking height of Molex 5052702412?

The mated stack height is 0.8mm, measured from the bottom of the receptacle to the top of the mating header.

Does 5052702412 have pick and place and solder retention features?

Yes, the part includes both pick-and-place pads for automated assembly and solder retention features to keep it in place during reflow.
