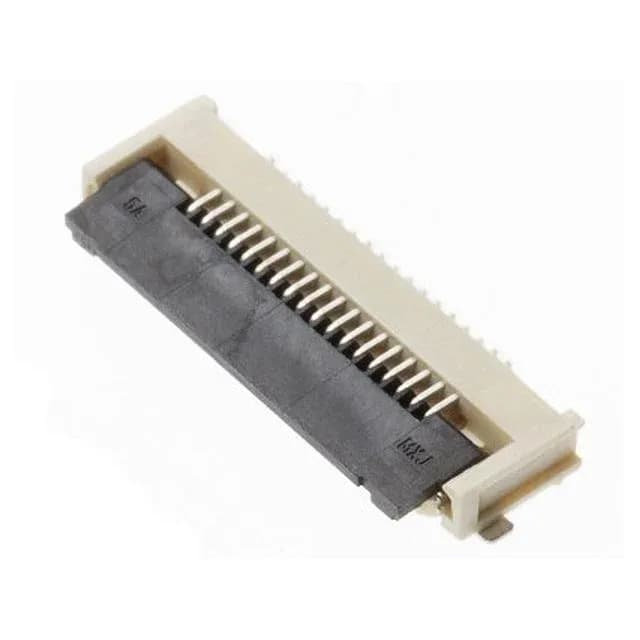

The Molex 5052780533 is a 5-position FFC/FPC connector from the Easy-On FS19 series, built for low-profile board-edge signal interconnects. Rated 0.5A per contact at 50V, this is a signal-level interconnect — think sensor links, display data lines, or control bus connections — not a power rail. The tin contact finish with 39.4µin thickness supports moderate mating cycles (25 cycles rated) in a clean indoor environment.
Board-fit and termination details
The flip-lock actuator secures the FFC/FPC after insertion — no secondary latch needed. Accepts 0.30mm-thick FFC with tabbed, tapered cable end type. Housing is beige LCP glass-filled (UL94 V-0), actuator is black glass-filled nylon. The bottom-contact design means the FFC pads face down toward the PCB pads.
