Molex 5052781733 — FFC / FPC Cable Assemblies

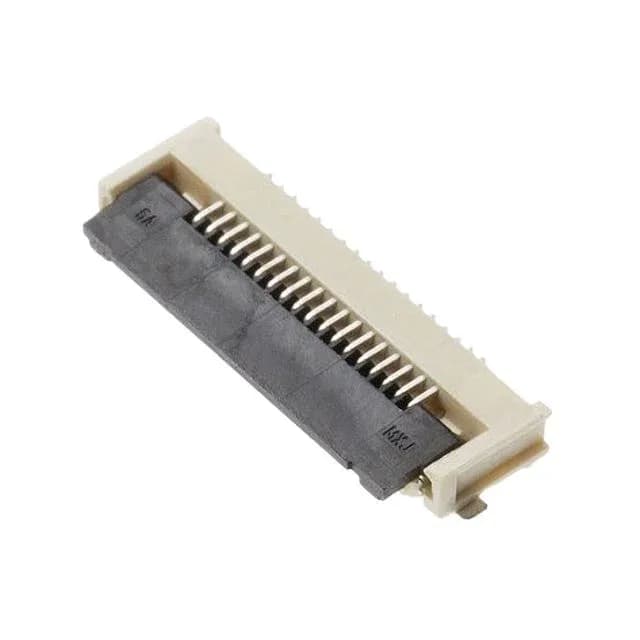

Molex 5052781733 Easy-On FS19 FFC Connector, 17 Pos

MPN5052781733
Active

Molex Easy-On FS19 505278 series, 5052781733, 17-position FFC/FPC connector, 0.020" (0.50mm) pitch, right-angle SMT, flip lock, tin-plated contacts, bottom contact type, 0.5 A per circuit, -40°C to 85°C.

$0.7900Ref. price · indicative, final on quote
Molex 5052781733 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEasy-On FS19 505278
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5052781733 key specifications
ParameterValue
SeriesEasy-On FS19 505278
MountingSurface Mount, Right Angle
Cable end typeTabbed, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-40°C ~ 85°C
Housing colorBeige
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

5052781733 additional specifications
ParameterValue
Actuator materialPolyamide (PA), Nylon, Glass Filled
Height above board0.075\" (1.90mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
TerminationSolder
Mating cycles25
Contact finishTin
Locking featureFlip Lock
FFC, FCB thickness0.30mm
Positions17
Contact finish thickness39.4µin (1.00µm)

Product details

What this 17-position FFC connector does on your board

The 5052781733 is a 17-position, 0.50mm pitch FFC/FPC connector from Molex's Easy-On FS19 series. It accepts a 0.30mm-thick FFC with tabbed, tapered ends and terminates via solder to the PCB in a right-angle orientation.

Flip lock and solder retention keep the cable seated

The flip lock actuator (black polyamide, glass-filled) clamps the FFC against the bottom contacts. It locks positively without a secondary latch — vibration won't work it loose.

Frequently asked questions

Does 5052781733 have a flip lock mechanism?

Yes, it uses a flip lock actuator. The black polyamide lever flips down to clamp the FFC against the bottom contacts, providing positive retention without a secondary latch.

What is the equivalent of 5052781733?

The closest functional equivalent is the 505278-1733, which shares the same pitch, position count, height, and flip lock. The difference is the housing color — beige vs black — and the packaging options. Both are active.
