Molex 5052781833 — FFC / FPC Cable Assemblies

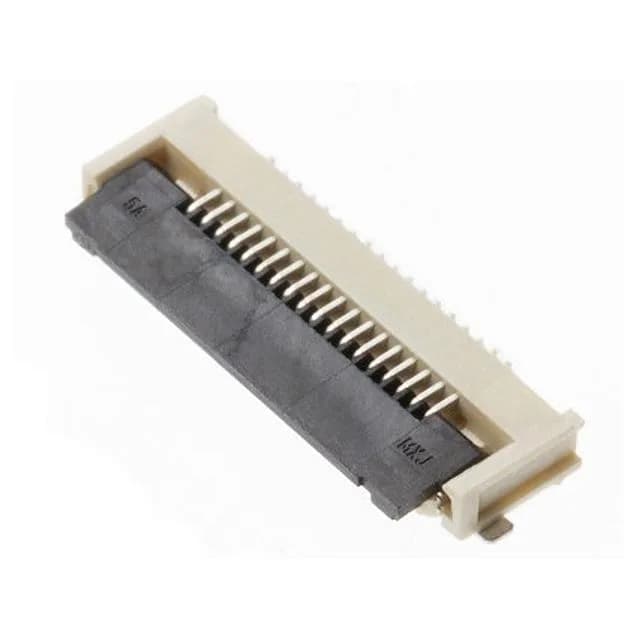

Molex 5052781833 – Easy-On FS19 FFC Connector, 18 Pos, 0.5mm

MPN5052781833
Active

Molex Easy-On FS19 505278, 18-position FFC/FPC connector, 0.50mm pitch, 0.5A, surface mount right-angle with flip lock, tin-plated phosphor bronze contacts, beige LCP housing, -40°C to 85°C.

$0.7300Ref. price · indicative, final on quote
Molex 5052781833 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEasy-On FS19 505278
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5052781833 key specifications
ParameterValue
SeriesEasy-On FS19 505278
MountingSurface Mount, Right Angle
Cable end typeTabbed, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-40°C ~ 85°C
Housing colorBeige
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

5052781833 additional specifications
ParameterValue
Actuator materialPolyamide (PA), Nylon, Glass Filled
Height above board0.075\" (1.90mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
TerminationSolder
Mating cycles25
Contact finishTin
Locking featureFlip Lock
FFC, FCB thickness0.30mm
Positions18
Contact finish thickness39.4µin (1.00µm)

Product details

18-position 0.50mm pitch FFC connector for compact board layouts

The 5052781833: This Molex Easy-On FS19 connector packs 18 circuits into a 0.50mm pitch, fitting a narrow FFC cable for dense PCB routing.

Signal current and mating cycle limits

Rated 0.5A per contact, this connector handles low-current digital or control signals—not power delivery. The tin-plated contacts are rated for 25 mating cycles, enough for production harness assembly and field service but not repeated reconnection.

Flip-lock actuation and FFC thickness compatibility

The flip-lock actuator secures the FFC without a secondary latch; it accepts 0.30mm thick cable with tabbed, tapered ends. The bottom-contact design mates the FFC pads to the connector terminals on the lower side of the cable.

Frequently asked questions

What is the pitch and position count of 5052781833?

0.50mm pitch, 18 positions.

Does 5052781833 have a replacement or equivalent part?

The Easy-On FS19 series includes other position counts, but a pin-compatible alternative would need matching pitch, orientation, and actuator style.

Is 5052781833 compatible with 0.5mm pitch FFC cables?

Yes. The 0.50mm pitch and 0.30mm FFC thickness spec match standard 0.5mm-pitch FFC with tabbed, tapered ends.
