Molex 5054321001

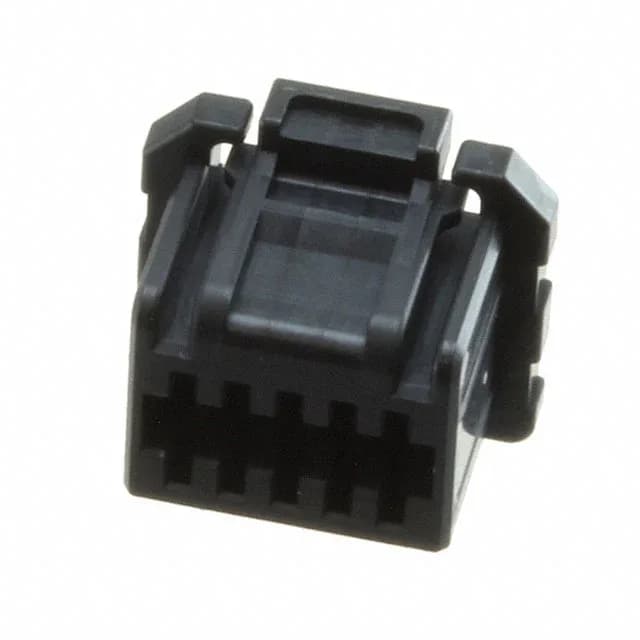

Molex 5054321001 Micro-Lock PLUS Receptacle Housing, 10 Pos

MPN 5054321001
Active

Molex Micro-Lock PLUS 505432 series, receptacle housing, 10 positions, 2 rows, 1.25mm pitch, free-hanging in-line, crimp termination, latch holder, black PBT, -40°C to 105°C.

$0.4700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMicro-Lock PLUS 505432
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5054321001 specifications
ParameterValue
SeriesMicro-Lock PLUS 505432
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.049\" (1.25mm)
PackageBulk
Rows2
Contact terminationCrimp
Positions10

Product details

10-Position Dual-Row Housing — What You're Actually Ordering

The Molex 5054321001 is the 10-circuit receptacle housing from the Micro-Lock PLUS 505432 series. It's a free-hanging (in-line) dual-row housing with a 1.25mm pitch, designed for wire-to-board applications where the mating header is board-mounted.

This is the single most common sourcing miss on this part.

Mating Half and Wire Range

This receptacle mates with the Micro-Lock PLUS 505432 series board-mount header (the male pin header with the matching latch). The 1.25mm pitch and dual-row layout are fixed — the header must be the same 10-circuit, 2-row configuration. The wire range accepted by the crimp terminals is specified in the terminal datasheet; the housing itself does not limit wire size — the terminal's wire barrel does.
