Molex 5054761010 — Mezzanine & Stacking Connectors

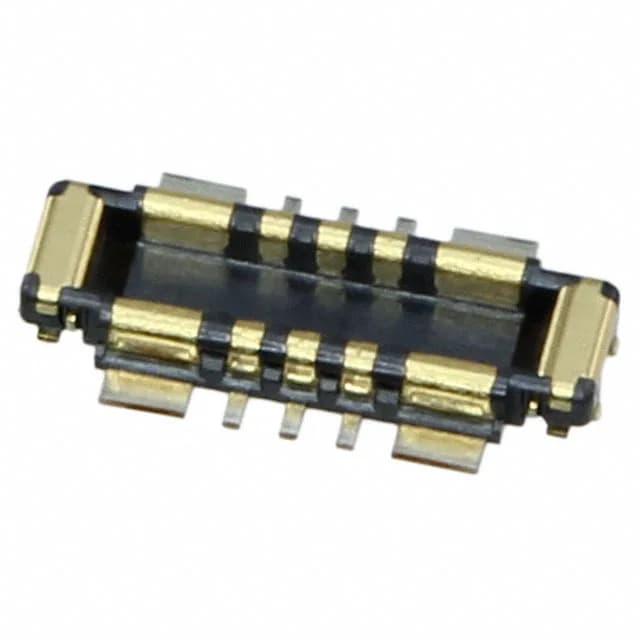

Molex SlimStack 5054761010 Plug, 10 Pos (6+4 Power)

MPN5054761010
Active

Molex SlimStack 505476 series plug, order code 5054761010, 10 positions (6 + 4 power), dual row, 0.016" (0.40mm) pitch, 0.020" (0.50mm) mated height, gold-plated outer shroud contacts, surface mount, solder retention.

$0.4383Ref. price · indicative, final on quote
Molex 5054761010 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSlimStack 505476
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5054761010 specifications
ParameterValue
SeriesSlimStack 505476
MountingSurface Mount
Connector typePlug, Outer Shroud Contacts
Height above board0.020\" (0.50mm)
Mated stacking heights0.6mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions10 (6 + 4 Power)

Product details

SlimStack Plug for Tight Board Stacks

The 0.016" (0.40mm) pitch and dual-row layout pack 10 positions into a footprint that suits space-constrained portable electronics, wearables, or handheld instrumentation where every millimeter of z-height matters.

Mixed Signal-and-Power Position Map

The 10 positions are not all equal: the layout splits into 6 signal contacts and 4 power contacts. This is not a uniform-pitch signal bus — the power positions are sized to carry higher current, so the mating receptacle must match the same pin allocation. The 0.020" (0.50mm) height above board sets the top-side clearance; the 0.6mm stacking height is the total space between the two PCBs when mated. A 0.40mm pitch at this density means the PCB breakout traces need careful routing — the narrow pitch limits escape via fan-out under the connector body.

Frequently asked questions

Where can I buy 5054761010 available via RFQ confirmation?

Submit an RFQ for the quantity you need.

What is the mating connector for Molex 5054761010?

The 5054761010 is a plug (male shroud contacts) and mates with the matching SlimStack 505476 receptacle — the receptacle part number in the same series is the female counterpart. Confirm the position count and stacking height match your board stack.

Does 5054761010 have solder retention features?

Yes, the plug includes solder retention features — additional SMT pads on the body that anchor the connector to the PCB, improving joint reliability under mechanical stress.

Is 5054761010 equivalent to Hirose DF12 series?

No — the Hirose DF12 series uses a different pitch and footprint. The 5054761010 is a 0.40mm pitch SlimStack part; the DF12 is typically 0.50mm pitch. They are not pin-compatible or interchangeable.
