The 5055670571 is a 5-position, single-row header from the Molex Micro-Lock PLUS 505567 series, designed for board-to-cable/wire applications.
This header mates with a Micro-Lock PLUS receptacle housing (crimp type) using the same 1.25 mm pitch.

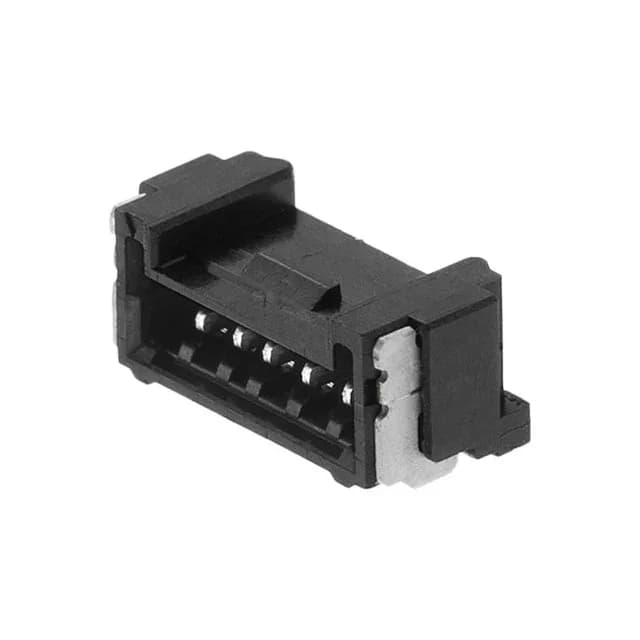

5055670571 Molex Micro-Lock PLUS Header, 5 Pos, 1.25mm
MPN5055670571
Active
Molex Micro-Lock PLUS 5055670571, Board to Cable/Wire header, 5 positions, 1.25 mm pitch, Surface Mount Right Angle, Tin plated male pins, locking ramp, UL94 V-0.
$1.0200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-Lock PLUS 505567
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Lock PLUS 505567 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 50VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.154\" (3.90mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Product details
Frequently asked questions
What is the pitch of 5055670571?
The pitch is 1.25 mm (0.049 in).
What is the mating connector for the Molex 5055670571?
It mates with a Micro-Lock PLUS receptacle housing (crimp type) from the same 505567 series, using the same 1.25 mm pitch.
Is 5055670571 RoHS compliant?
Yes, it is ROHS3 compliant.
