Molex 5055680271

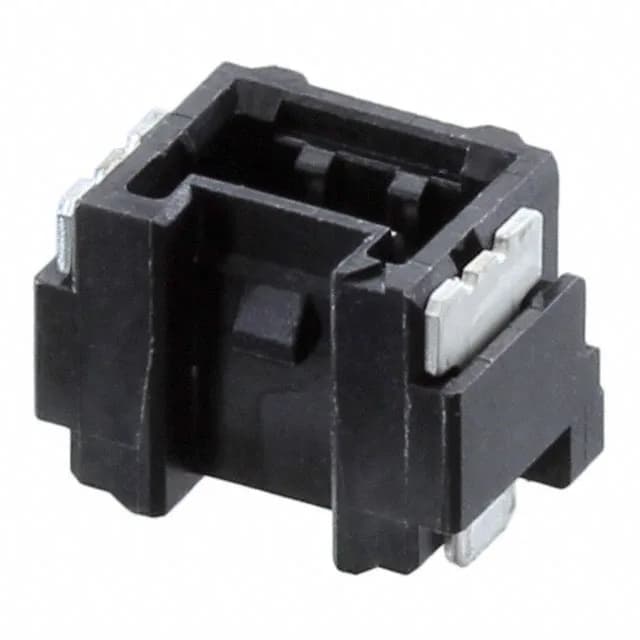

Molex 5055680271 Micro-Lock PLUS Header, 2-Pos, 1.25mm

MPN 5055680271
Active

Molex Micro-Lock PLUS 505568 series, 5055680271, board-to-cable/wire header, 2 circuits, 1.25mm pitch, SMT, shrouded 4-wall, tin-plated contacts, UL94 V-0

$0.7900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMicro-Lock PLUS 505568
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5055680271 key specifications
ParameterValue
SeriesMicro-Lock PLUS 505568
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typePush-Pull
Voltage rating50VAC/DC
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.165\" (4.20mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled

All specifications

5055680271 additional specifications
ParameterValue
Mated stacking heights7.4mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial
Contact shapeSquare
Rows1
Pitch0.049\" (1.25mm)
Positions2
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

The 5055680271 is a 2-position, single-row header from the Molex Micro-Lock PLUS 505568 series, designed for board-to-cable/wire connections on a 1.25mm pitch. It mounts via SMT with solder retention features to hold it in place during reflow. The full 4-wall shrouding protects the male pins from bending during mating and prevents off-angle insertion — a practical advantage in field-service or high-vibration assemblies where the mating half gets plugged and unplugged repeatedly.

Pitch, stack height, and footprint fit

At 1.25mm pitch, this header fits a compact PCB footprint — the 0.049" center-to-center spacing is common for wire-to-board connectors in space-constrained designs. With only 2 positions, it handles simple signal or low-power connections — think sensor inputs, limit switches, or auxiliary power feeds. The current rating is listed as varying by wire gauge, so the limiting factor is the wire and terminal, not the header itself.

Mating and termination

Termination is solder to the PCB surface-mount pads. The push-pull fastening type means the mating receptacle latches with a simple push and releases with a pull — no screw locks or secondary hardware.

Sourcing and compliance status

No stock-holding claim; sourced per RFQ.
