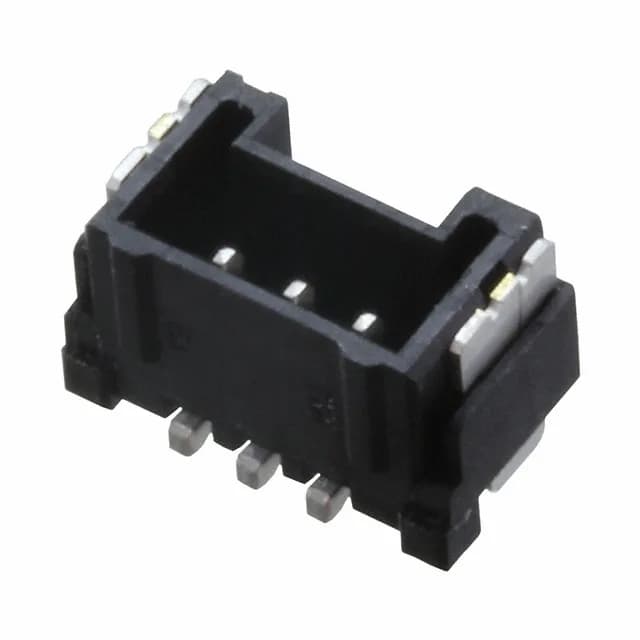

Molex Micro-Lock PLUS 505568 series, 5055680371, Board to Cable/Wire header, 3 circuits, 1.25 mm pitch, SMT, shrouded 4-wall, tin contacts, active production.
| Parameter | Value |
|---|---|
| Series | Micro-Lock PLUS 505568 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 50VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.165\" (4.20mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Mated stacking heights | 7.4mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The push-pull fastening type means it latches without tools, but the latch is positive enough for vibration environments typical of automotive and industrial use.
When mated with the Micro-Lock PLUS receptacle, the stack height is 7.4 mm — a fixed dimension that determines the z-axis clearance inside your enclosure. The header is rated for 50 VAC/DC.
The mating connector is a Micro-Lock PLUS receptacle housing (crimp type) from the same 505568 series, with 3 positions and 1.25 mm pitch. Use the corresponding Molex crimp terminals for your wire gauge.
Submit your BOM quantity for current pricing and lead time — no stock-holding claim is made here.
The current rating is listed as varying by wire gauge. In practice, the header pin itself is not the bottleneck — the limiting factor is the wire size and the crimp terminal's rating. For a given wire gauge, refer to the Micro-Lock PLUS terminal datasheet.
