Molex 5055680471 — Pin Headers

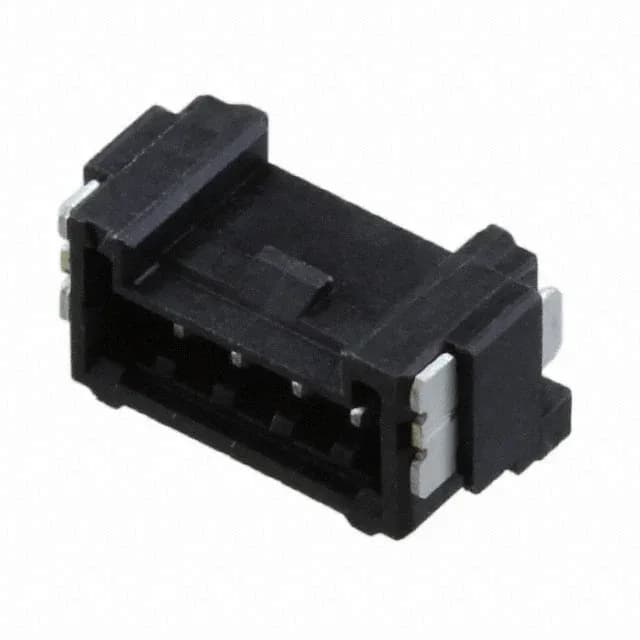

5055680471 Molex Micro-Lock PLUS Header, 4 Pos, 1.25mm, SMT

MPN5055680471
Active

Molex Micro-Lock PLUS 505568 series, 5055680471, Board to Cable/Wire header, 4 circuits, 1.25mm pitch, SMT, shrouded - 4 wall, solder retention, UL94 V-0, -40°C to 105°C.

$0.8000Ref. price · indicative, final on quote
Molex 5055680471 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-Lock PLUS 505568
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5055680471 key specifications
ParameterValue
SeriesMicro-Lock PLUS 505568
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typePush-Pull
Voltage rating50VAC/DC
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.165\" (4.20mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled

All specifications

5055680471 additional specifications
ParameterValue
Mated stacking heights7.4mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial
Contact shapeSquare
Rows1
Pitch0.049\" (1.25mm)
Positions4
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

Board-fit and footprint notes

The 5055680471: This is a 4-position, single-row header on 1.25mm pitch, surface-mount, from the Micro-Lock PLUS 505568 series. Mated stack height is 7.4mm, so the mating receptacle sits that far above the board surface. That z-height is fixed by the housing design; plan the enclosure clearance accordingly.

Mates with the Micro-Lock PLUS receptacle housing (same series), which accepts crimp terminals.

Application and environment fit

Rated for automotive, general purpose, and industrial applications. Housing is UL94 V-0 glass-filled nylon.

Frequently asked questions

What is the mating connector for 5055680471?

The mating half is a Micro-Lock PLUS receptacle housing (same 505568 series), which accepts crimp terminals. The header is shrouded on all four walls, so the receptacle self-aligns during mating.

Is 5055680471 suitable for automotive use?

Yes, automotive is one of the listed applications. Tin contacts are fine for moderate cycle counts; for high-vibration or frequent disconnect, consider a gold-plated variant.

Is 5055680471 RoHS compliant?

Yes, ROHS3 Compliant per the lifecycle record.
