Molex Micro-Lock PLUS 505568 series, 1.25 mm pitch, 8-position, single-row, SMT header, shrouded 4-wall, gold-plated male pins, push-pull latch, -40°C to 105°C, UL94 V-0, ROHS3 compliant
| Parameter | Value |
|---|---|
| Series | Micro-Lock PLUS 505568 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 50VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.165\" (4.20mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Mated stacking heights | 7.4mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 8 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 3.90µin (0.099µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |

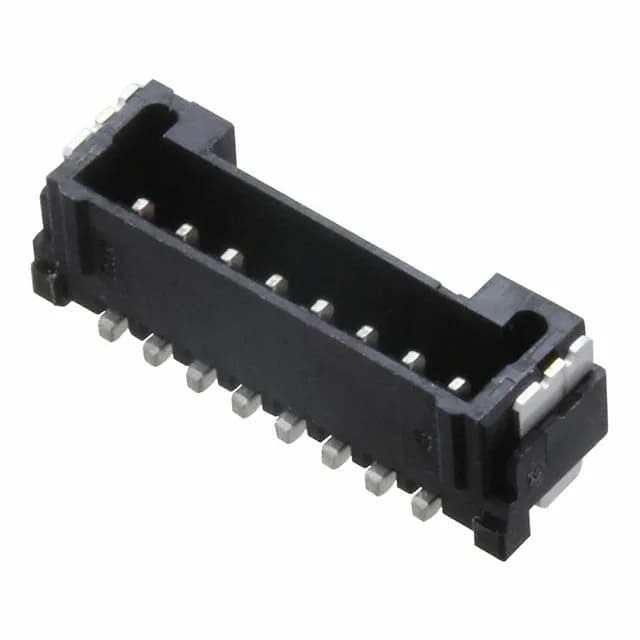

Molex 5055680881 is an 8-position, single-row, surface-mount header from the Micro-Lock PLUS 505568 series, designed for board-to-wire applications.
The header is terminated by solder to surface-mount pads.
5055680881 mates with the Micro-Lock PLUS receptacle housing (sold separately). The 1.25 mm pitch, single-row, push-pull latch interface is shared across the series; confirm the circuit count and keying match your harness.
Yes, it is ROHS3 compliant.
