Molex, Micro-Lock PLUS 505575 series, Board to Cable/Wire header, 4 circuits, 2.00mm pitch, Surface Mount, Locking Ramp, Tin contacts, -40°C ~ 105°C, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Micro-Lock PLUS 505575 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.339\" (8.61mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Mated stacking heights | 11.1mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |

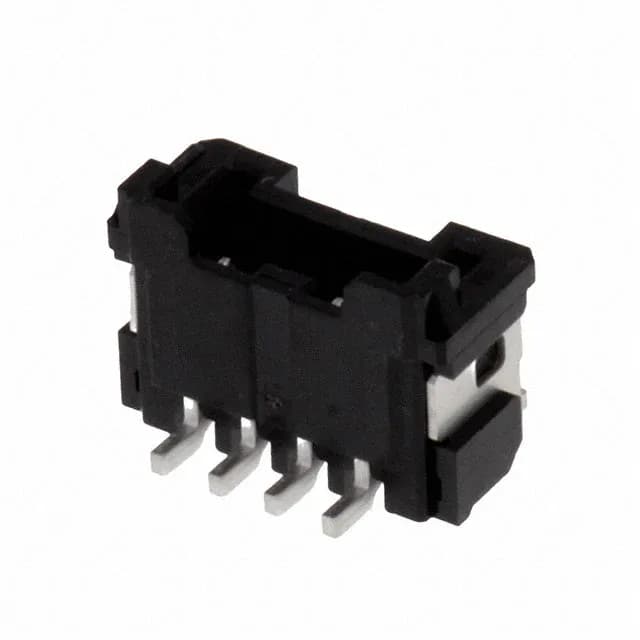

The 5055750471: This is a 4-position, single-row header from the Micro-Lock PLUS 505575 series, designed for board-to-wire connections. The 2.00mm pitch keeps the footprint compact, and the shrouded 4-wall housing protects the male pins during mating.
The mated stacking height is 11.1mm, which sets the board-to-wire clearance in the assembly.
This is a board-to-wire header; it mates with a Micro-Lock PLUS receptacle housing that accepts the matching crimp terminals. The locking ramp on the header engages with the receptacle latch for a vibration-resistant connection.
