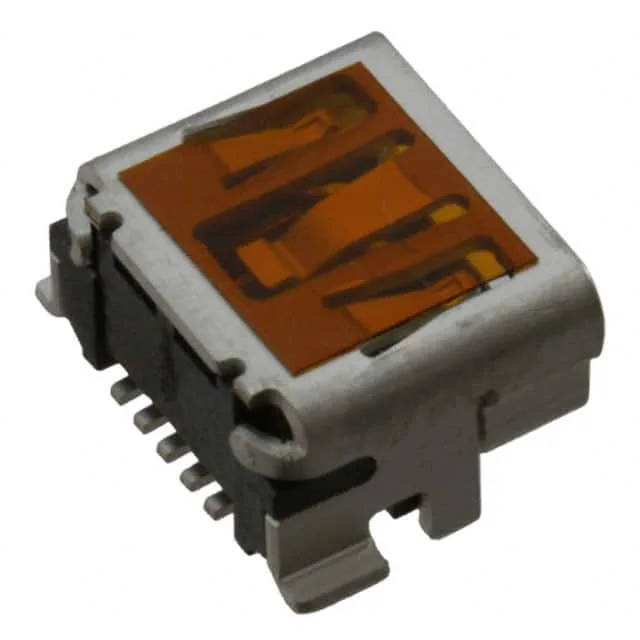

513870530 — Molex product photo
Molex

Molex 513870530 USB Mini B Receptacle, 5 Contacts, 1A

MPN513870530
Active

Molex 51387 series USB 2.0 mini B receptacle, 5 contacts, 1A, 30VAC/DC, shielded, SMT right-angle, gold contact finish, UL94 V-0.

$1.19Ref. price · indicative, final on quote
513870530 datasheet
StockIn Stock (22)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

513870530 Technical Specifications
ParameterValue
Series51387
Mounting typeSurface Mount, Right Angle; Through Hole
Connector typeUSB - mini B
Voltage - rated30VAC/DC
Current rating1A
Positions5
Mounting featureHorizontal
Operating temperature0°C ~ 50°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
ShieldingShielded
TerminationSolder
Contact finishGold
SpecificationsUSB 2.0 OTG
Number of ports1

Product details

It carries 5 contacts and is rated for 1A at 30VAC/DC, supporting USB On-The-Go (OTG) functionality for portable devices.

This receptacle offers a dual mounting option: surface-mount right-angle for reflow assembly, with through-hole retention posts for additional mechanical hold. The Solder Retention feature helps keep the part in place during wave or selective soldering.

Frequently asked questions

What is the pinout of the USB mini B connector 513870530?

The 513870530 follows the standard USB 2.0 mini B pinout: 5 contacts — VBUS, D-, D+, ID, and GND. The ID pin enables OTG device role negotiation.
