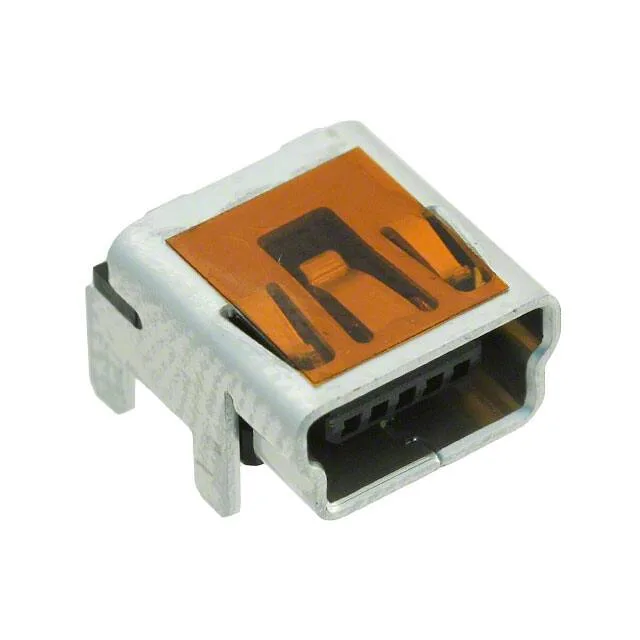

Molex 548190589 USB Mini B Receptacle, 5 Pos SMD RA

MPN548190589
Active

Molex 54819 series USB - mini B receptacle, 5 contacts, 1 port, shielded, SMT right-angle, gold contact finish, UL94 V-0.

$1.55Ref. price · indicative, final on quote
548190589 datasheet
StockIn Stock (17)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

548190589 Technical Specifications
ParameterValue
Series54819
Mounting typeSurface Mount, Right Angle; Through Hole
Connector typeUSB - mini B
Positions5
Mounting featureHorizontal
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
ShieldingShielded
TerminationSolder
Contact finishGold
Number of ports1

Product details

USB Mini B Receptacle for Board-Edge Integration

The Molex 548190589 is a USB - mini B receptacle from the 54819 series, carrying 5 contacts in a single shielded port. It terminates via solder to the PCB, with a right-angle orientation that places the cable entry parallel to the board surface — a common layout for panel-mount or board-edge USB ports on compact enclosures.

This receptacle supports both Surface Mount, Right Angle and Through Hole mounting — the SMT pads handle the signal connections while the through-hole posts provide mechanical retention through the board. The right-angle body keeps the mated cable low-profile against the PCB, suiting it for space-constrained designs where a vertical USB port would interfere with an enclosure lid or adjacent component.

Shielding and Compliance

The base product number is 054819, which is the same designator used on the manufacturer's own documentation and packaging labels.
