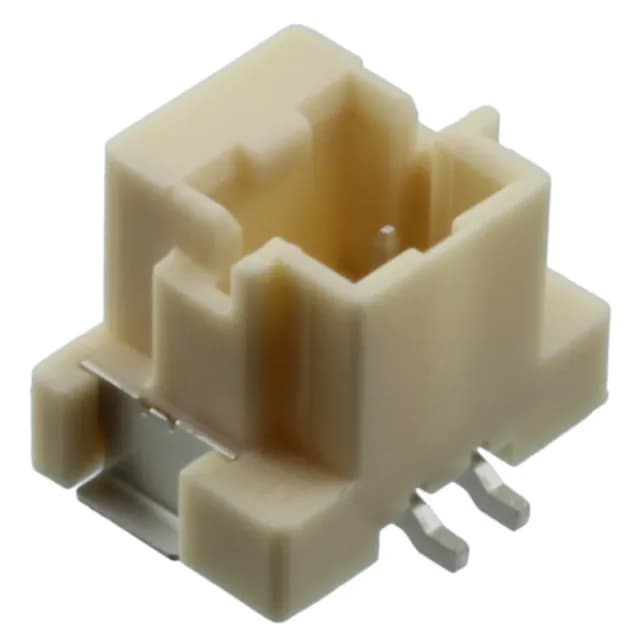

Molex DuraClik 560020 series, Board to Cable/Wire header, 2.00mm pitch, 2 positions, shrouded - 4 wall, SMT, latch lock, tin-plated male pins, natural PA housing, ROHS3 compliant
| Parameter | Value |
|---|---|
| Series | DuraClik 560020 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Lock |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.315\" (8.00mm) |
| Insulation material | Polyamide (PA), Nylon |
| Mated stacking heights | 9.3mm |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The Molex 5600200220 is a 2.00mm pitch, 2-position SMT header from the DuraClik 560020 series, designed for board-to-cable/wire applications.
Mates with the corresponding DuraClik receptacle (sold separately) for a wire-to-board interconnect. The 9.3mm mated stack height sets the z-height budget on the PCB.
ROHS3 compliant, with a natural polyamide (nylon) housing.
It is a 2.00mm pitch, 2-position header.
Yes, it is fully shrouded with a 4-wall design that protects the pins and guides mating.
Yes, the series is listed for automotive and industrial use, with a latch lock for vibration resistance.
The part is active, so no substitution is needed. Confirm the mating half and footprint before committing.
