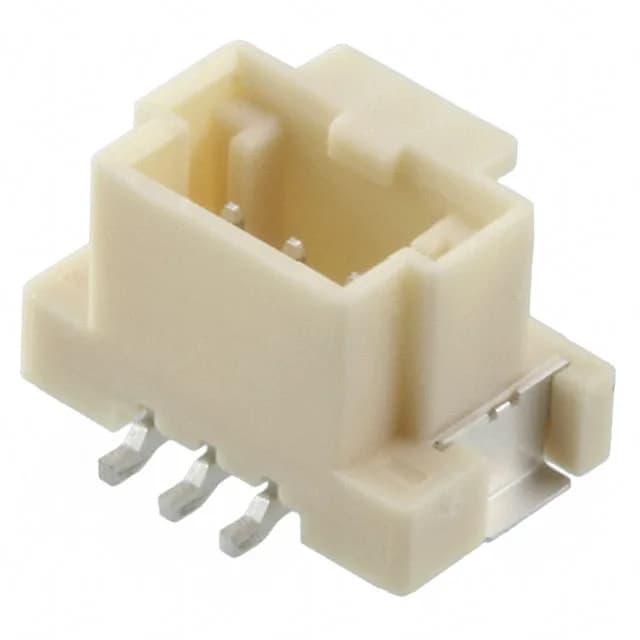

Molex DuraClik 560020, Board to Cable/Wire Header, 3 circuits, 2.00 mm pitch, Surface Mount, Tin-plated male pins, shrouded 4-wall with latch lock, solder retention features, Natural insulation.
| Parameter | Value |
|---|---|
| Series | DuraClik 560020 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Lock |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.315\" (8.00mm) |
| Insulation material | Polyamide (PA), Nylon |
| Mated stacking heights | 9.3mm |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 5600200320: This is a 3-position, single-row header on a 2.00 mm pitch — the board footprint needs one row of 3 through-pads spaced 2.00 mm centre-to-centre. The surface mount termination means the part reflows with the rest of the SMD components; no wave-solder step required.
The header mates with a DuraClik receptacle (same series) that accepts 20-24 AWG wire; the latch lock engages with the corresponding ramp on the receptacle.
The mating pitch is 2.00 mm (0.079 inches). The single-row, 3-position layout uses that pitch centre-to-centre.
Yes, the termination is Solder Surface Mount. The part is supplied in Tape & Reel for automated placement.
The mating half is a DuraClik 560020 series receptacle housing with crimp terminals. The latch lock on the header engages with the receptacle's locking ramp. Confirm the circuit count and pitch match before ordering.
Yes, it is ROHS3 Compliant per the manufacturer's listing.
Yes, the series is rated for Automotive and Industrial applications. The latch lock and shrouded 4-wall design suit the vibration and handling demands of those environments.
