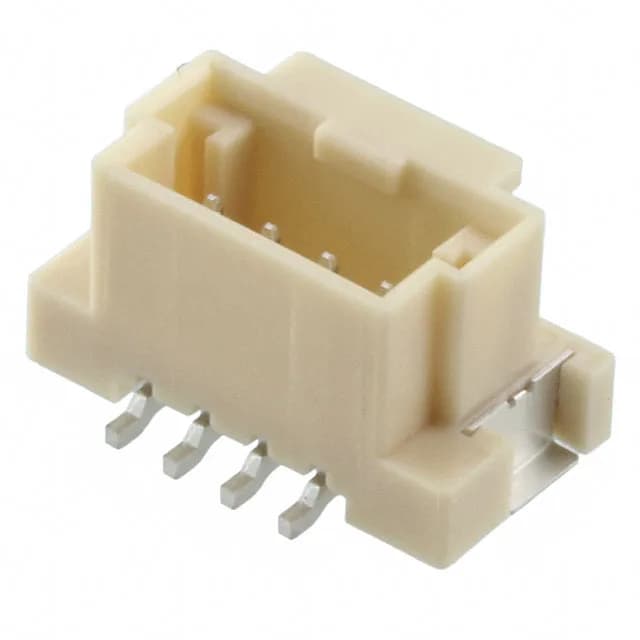

Molex 5600200420 DuraClik Header 2mm Pitch 4 Pos SMT

MPN 5600200420
Active

Molex DuraClik 560020 series, 5600200420, board-to-cable/wire header, 2.00mm pitch, 4 positions, single row, SMT, shrouded 4-wall, latch lock, tin contacts, 9.3mm mated stack height, natural insulation.

$1.8800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesDuraClik 560020
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5600200420 key specifications
ParameterValue
SeriesDuraClik 560020
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Lock
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.315\" (8.00mm)
Insulation materialPolyamide (PA), Nylon
Mated stacking heights9.3mm
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)

All specifications

5600200420 additional specifications
ParameterValue
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, Industrial
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions4
Contact finish - postTin
Contact finish - matingTin

Product details

2mm pitch SMT header with integrated latch

Its 2.00mm pitch and SMT termination suit it for space-constrained PCB layouts, while the shrouded 4-wall housing and latch lock provide secure mating in vibration-prone environments.

The header mates to a 9.3mm stack height, which sets the clearance between parallel boards or between board and cable assembly — confirm this dimension fits your enclosure z-height budget.
