Molex 5600200520

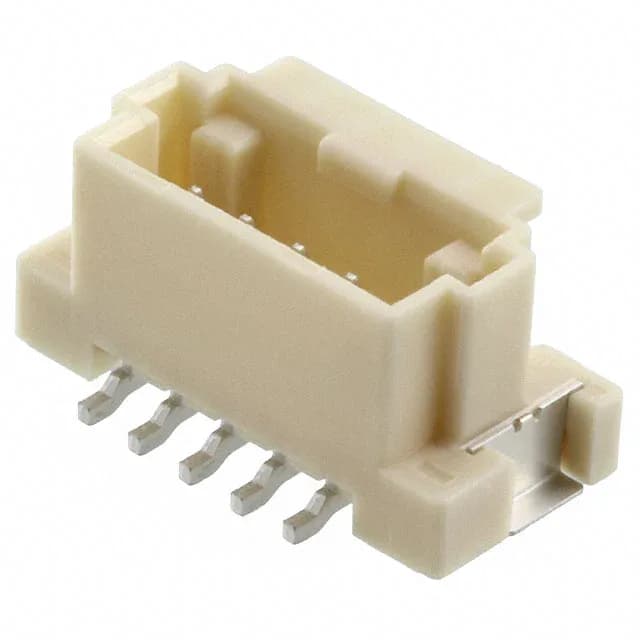

Molex 5600200520 DuraClik Header, 5 Pos, 2mm, SMT

MPN 5600200520
Active

Molex DuraClik 560020 series, Board to Cable/Wire header, 5 circuits, 2.00mm pitch, SMT, shrouded 4-wall, latch lock, solder retention, tin contacts, 9.3mm mated stack height.

$1.2000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesDuraClik 560020
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5600200520 key specifications
ParameterValue
SeriesDuraClik 560020
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Lock
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.315\" (8.00mm)
Insulation materialPolyamide (PA), Nylon
Mated stacking heights9.3mm
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)

All specifications

5600200520 additional specifications
ParameterValue
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, Industrial
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions5
Contact finish - postTin
Contact finish - matingTin

Product details

Its 2.00 mm pitch and shrouded 4-wall design with latch lock provide secure mating and vibration resistance, while the solder retention feature improves SMT joint reliability during reflow and under mechanical stress. The mated stack height of 9.3 mm defines the z-axis clearance needed in the enclosure when mated with the corresponding DuraClik receptacle.

The insulation is natural polyamide (nylon) with an insulation height of 8.00 mm.

MPN
5600200520
