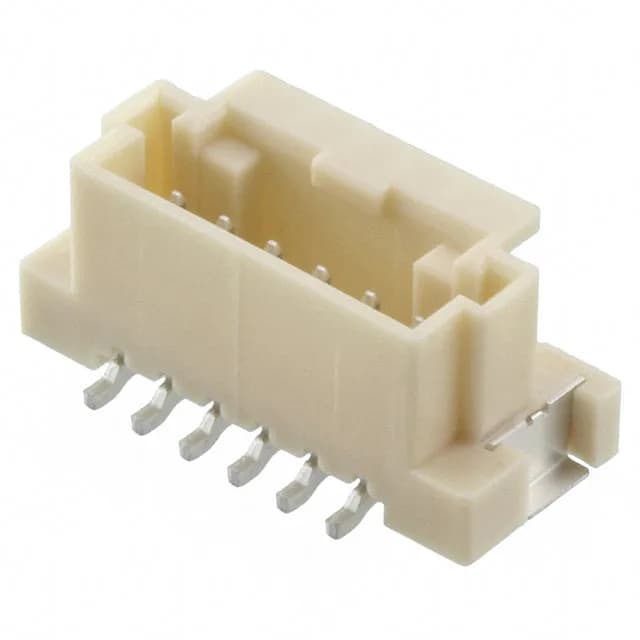

Molex DuraClik 560020 series, 5600200620, Board to Cable/Wire header, 6 positions, 2.00 mm pitch, single row, SMT, shrouded 4-wall, latch lock, solder retention, tin contacts, 9.3 mm mated stack height, natural insulation.
| Parameter | Value |
|---|---|
| Series | DuraClik 560020 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Lock |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.315\" (8.00mm) |
| Insulation material | Polyamide (PA), Nylon |
| Mated stacking heights | 9.3mm |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 5600200620: A full 4-wall shroud surrounds the male pins, protecting them during handling and mating, while the latch lock provides positive retention against vibration-induced disconnection.
The mated stack height is 9.3 mm, which gives a low-profile interconnect for enclosures with tight z-axis clearance.
The pitch is 2.00 mm (0.079 inches), which is the center-to-center spacing between adjacent pins.
Yes, it is a shrouded header with a full 4-wall shroud that protects the male pins and guides the mating receptacle.
