Molex 5600200720

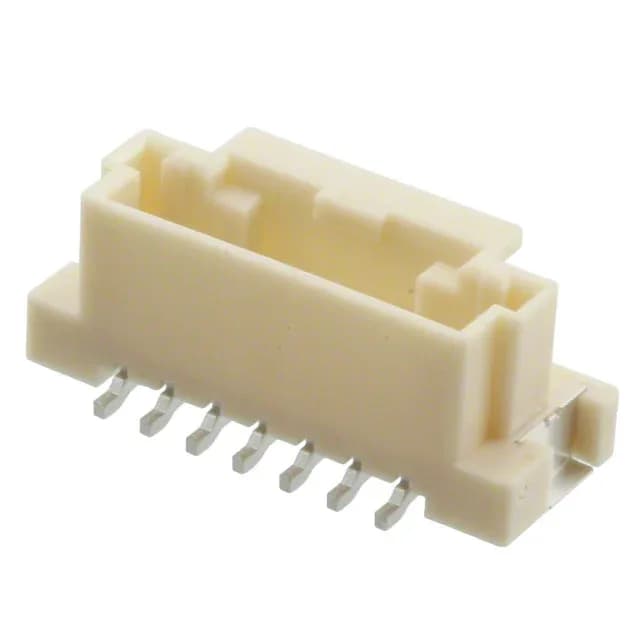

Molex 5600200720 DuraClik Header, 7 Pos, 2mm, SMT

MPN 5600200720
Active

Molex DuraClik 560020 series, 5600200720, Board to Cable/Wire header, 7 circuits, 2.00 mm pitch, single row, SMT, shrouded 4-wall, latch lock, tin-plated contacts, natural PA housing, 9.3 mm mated stack height.

$1.5100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesDuraClik 560020
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5600200720 key specifications
ParameterValue
SeriesDuraClik 560020
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Lock
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.315\" (8.00mm)
Insulation materialPolyamide (PA), Nylon
Mated stacking heights9.3mm
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)

All specifications

5600200720 additional specifications
ParameterValue
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, Industrial
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions7
Contact finish - postTin
Contact finish - matingTin

Product details

Board-to-cable header for vibration-prone environments

The Molex 5600200720 is a 7-position, single-row header from the DuraClik 560020 series, designed for Board to Cable/Wire applications. Its 2.00 mm pitch and surface-mount termination suit compact PCBs where routing density matters, while the 4-wall shrouding and latch lock provide mechanical stability against vibration in automotive and industrial settings. Tin-plated contacts on both mating and post sides keep per-circuit cost low for moderate mating-cycle applications, and the 9.3 mm mated stack height gives a predictable z-height for enclosure clearance.

SMT retention and latch lock for automated assembly

Solder retention features on the header hold it in place during reflow, reducing the risk of shifting or tombstoning in high-volume SMT lines. The latch lock engages with the mating receptacle for a positive audible click, preventing accidental disconnection under vibration.

MPN
5600200720
