Molex 5600200820 — Pin Headers

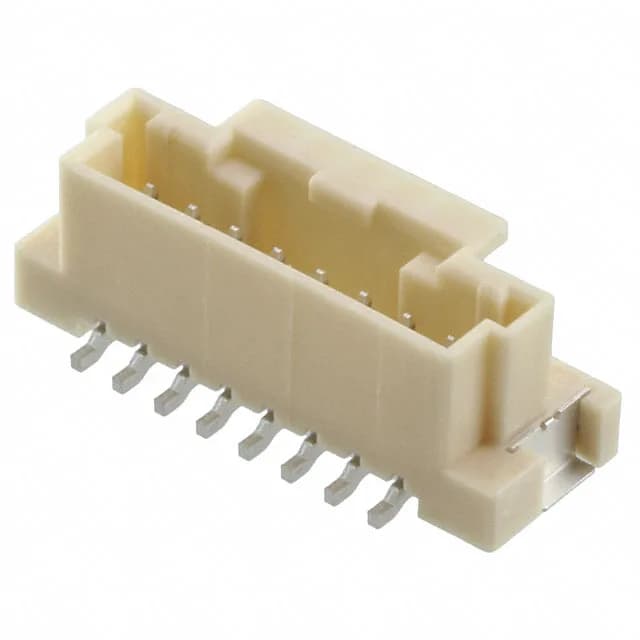

Molex 5600200820 DuraClik Header, 8 Pos, 2 mm, SMT

MPN5600200820
Active

Molex DuraClik 560020 series, 5600200820, board-to-cable/wire header, 8 positions, single row, 2.00 mm pitch, surface mount, shrouded 4-wall, latch lock, tin-plated male square pins, 9.3 mm mated stack height, solder retention, natural PA housing, tape and reel.

$1.5600Ref. price · indicative, final on quote
Molex 5600200820 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDuraClik 560020
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5600200820 key specifications
ParameterValue
SeriesDuraClik 560020
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Lock
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.315\" (8.00mm)
Insulation materialPolyamide (PA), Nylon
Mated stacking heights9.3mm
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)

All specifications

5600200820 additional specifications
ParameterValue
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, Industrial
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions8
Contact finish - postTin
Contact finish - matingTin

Product details

The 5600200820: This is an 8-circuit, single-row header on 2.00 mm pitch — a compact footprint that keeps board routing dense without squeezing traces into sub-0.5 mm lanes.

Latch lock and shrouding for vibration duty

This combination makes the 5600200820 suited for automotive and industrial environments where a loose connector means a service call.

SMT with solder retention for reflow reliability

Surface-mount termination with a solder retention feature — the extra metal tabs on the body wick solder and anchor the connector to the board during reflow. This reduces tombstoning and improves shear strength from cable strain after assembly.

Frequently asked questions

What connector housing mates with the 5600200820?

This is a male pin header from the DuraClik 560020 series. The latch lock on the header engages with the latch on the receptacle for positive retention.

Is the 5600200820 RoHS and REACH compliant?

The part is ROHS3 compliant per the manufacturer. REACH compliance is standard for this series; confirm at order if your application requires a specific declaration.
