Molex 5600201520

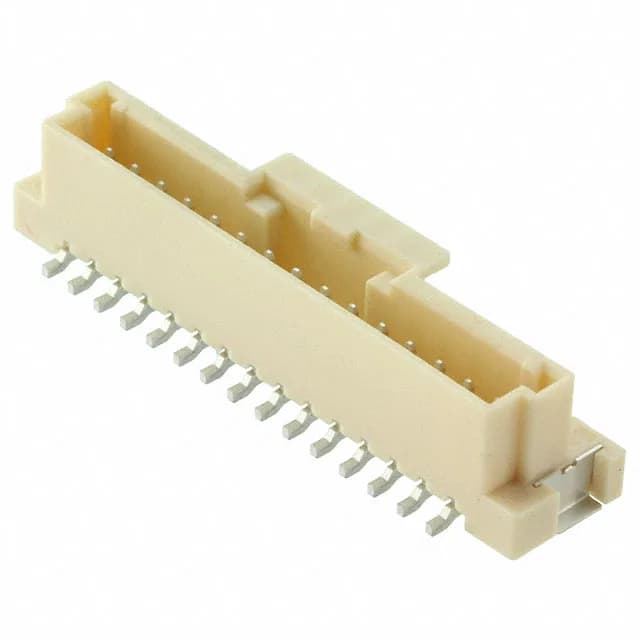

Molex 5600201520 DuraClik Header 15 Pos 2mm SMT Latch Lock

MPN 5600201520
Active

Molex DuraClik 560020 series, 5600201520, Board to Cable/Wire header, 15 circuits, 2.00 mm pitch, single row, SMT, shrouded 4-wall, latch lock, tin-plated contacts, natural insulation.

$2.0800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesDuraClik 560020
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5600201520 key specifications
ParameterValue
SeriesDuraClik 560020
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Lock
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.315\" (8.00mm)
Insulation materialPolyamide (PA), Nylon
Mated stacking heights9.3mm
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)

All specifications

5600201520 additional specifications
ParameterValue
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, Industrial
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions15
Contact finish - postTin
Contact finish - matingTin

Product details

15-position single-row SMT header with latch lock

The Molex 5600201520 is a 15-position, single-row header from the DuraClik 560020 series, designed for board-to-cable/wire applications. The latch lock engages with the mating DuraClik receptacle housing, providing an audible click that confirms full engagement — you should hear it click. The shrouded walls protect the male pins from damage during handling and misalignment.

Mating and termination checklist

The latch lock on the header engages the corresponding ramp on the receptacle for positive retention. Termination is solder to the PCB — the SMT pads are tin-plated (contact finish - post is tin). The header includes solder retention features to hold it in place during reflow.

Fit and application notes

Rated for automotive and industrial applications per the series designation.

MPN
5600201520
