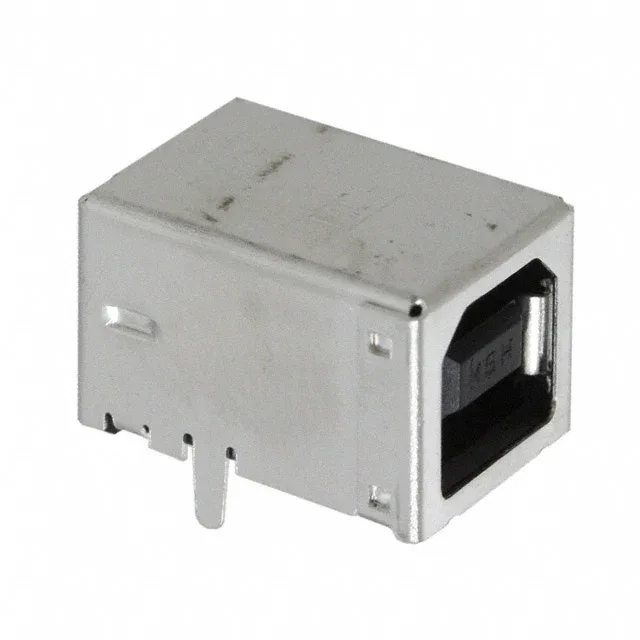

670688010 — Molex product photo
Molex

670688010 USB-B Receptacle, 4 Pos, Right Angle, Shielded

MPN670688010
Active

Molex 67068 USB-B (USB Type-B) receptacle, 4 contacts, right-angle through-hole, shielded, gold contacts, 1.5 A, 30 V, UL94 V-0.

$2.52Ref. price · indicative, final on quote
670688010 datasheet
StockIn Stock (15)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

670688010 Technical Specifications
ParameterValue
Series67068
Mounting typeThrough Hole, Right Angle
Connector typeUSB-B (USB TYPE-B)
Voltage - rated30V
Current rating1.5A
Positions4
Mounting featureHorizontal
Operating temperature0°C ~ 50°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB 2.0 Type-B Receptacle, Right-Angle, Shielded

It carries 4 contacts in a single port, rated for 1.5 A at 30 V — the full current envelope for USB 2.0 power delivery. The shielded shell, made from copper alloy, provides the EMI containment needed to keep USB 2.0 signal integrity within spec over the cable run.

Durability and Contact Finish

Mounting and Housing

Operating temperature is specified from 0°C to 50°C, which covers indoor commercial and light industrial environments but not extended outdoor or high-heat applications.
