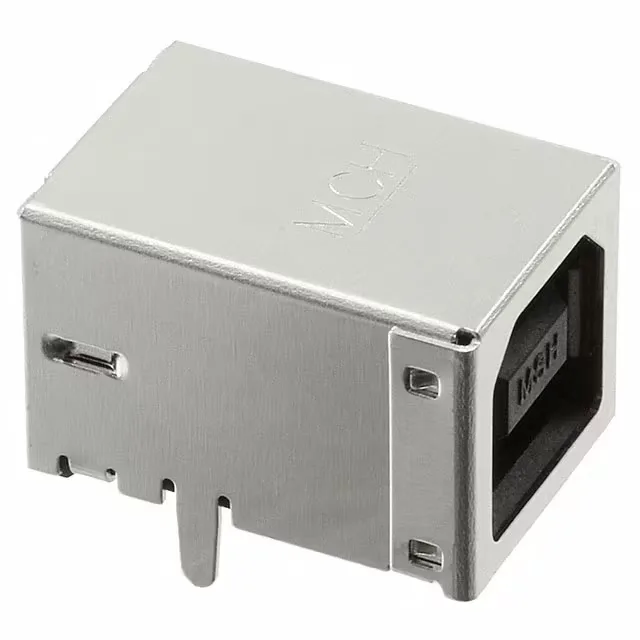

670688011 — Molex product photo
Molex

670688011 USB 2.0 Type-B Receptacle, 4P, R/A, Shielded

MPN670688011
Active

Molex 67068 series USB-B (USB TYPE-B) receptacle, 4 contacts, 1 port, USB 2.0, 1.5A, 30V, right-angle through-hole, shielded, gold contact finish, UL94 V-0.

$2.65Ref. price · indicative, final on quote
670688011 datasheet
StockIn Stock (26)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

670688011 Technical Specifications
ParameterValue
Series67068
Mounting typeThrough Hole, Right Angle
Connector typeUSB-B (USB TYPE-B)
Voltage - rated30V
Current rating1.5A
Positions4
Mounting featureHorizontal
Operating temperature0°C ~ 50°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB 2.0 Type-B, Right-Angle, Shielded — Board-Edge Fit

The Molex 670688011 is a USB-B (USB TYPE-B) receptacle from the 67068 series, built to the USB 2.0 specification. It carries 4 contacts in a single port and is rated for 1.5 A at 30 V — the standard power and signal envelope for a USB 2.0 device-side connection. The shell is shielded using a copper alloy, which is necessary to meet USB 2.0 radiated-emission limits and maintain signal integrity on the differential data pair. Operating temperature is specified from 0°C to 50°C, which covers indoor commercial and consumer environments but not extended industrial or outdoor ranges.

Frequently asked questions

Can I use 670688011 for USB 3.0?

No. The 670688011 is specified for USB 2.0 only. A USB 3.0 Type-B receptacle has additional contacts and a different internal pinout — this part is not compatible.
