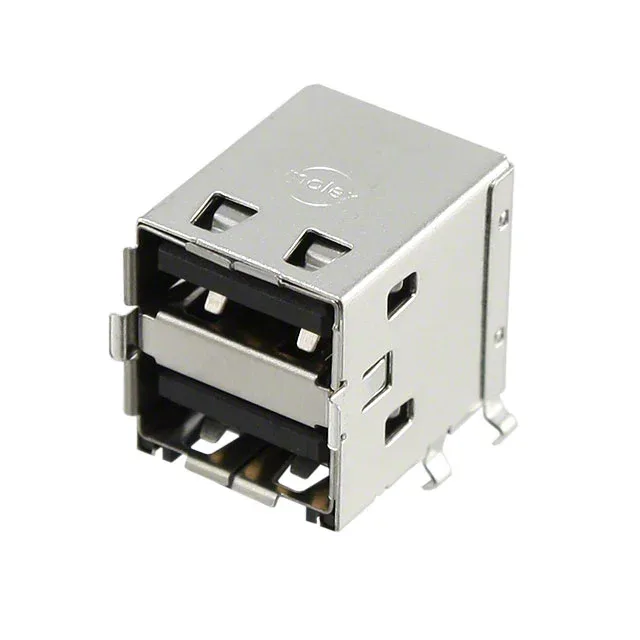

672983090 USB-A Stacked Receptacle, 8 Contacts, Right-Angle

MPN672983090
Active

Molex 67298 series USB-A (USB TYPE-A) stacked receptacle, 8 contacts (2 ports), right-angle through-hole, shielded, gold contact finish, board lock, 1.5A, 30VDC.

$1.81Ref. price · indicative, final on quote
672983090 datasheet
StockIn Stock (21)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

672983090 Technical Specifications
ParameterValue
Series67298
Mounting typeThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A), Stacked
Voltage - rated30VDC
Current rating1.5A
Positions8
Mounting featureHorizontal
Operating temperature0°C ~ 50°C
Insulation colorBlack
Shell (Shielding material)Brass, Steel (SUS 304)
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Contact finishGold
Number of ports2

Product details

Stacked USB-A Receptacle for Board-Edge Mounting

The Molex 672983090 is a stacked USB-A (USB TYPE-A) receptacle from the 67298 series, carrying 8 contacts across 2 ports — 4 per port matching the standard USB 2.0 pinout.

Rated 1.5A per contact at 30VDC, this connector handles standard USB 2.0 power delivery — enough for charging and data sync on consumer peripherals, hubs, and embedded boards. The 0°C to 50°C operating range is typical for indoor consumer electronics; it is not specced for automotive or industrial ambient.

Right-angle through-hole termination means the solder tails insert into plated holes on the PCB and are wave-soldered from the bottom side. The board lock feature — a pair of plastic or metal posts that snap into the PCB — anchors the connector against the insertion and extraction forces of USB cables. Without those locks, the shear load from a tight cable plug could lift the connector off the board over time.

Compliance and Material

The shell/shielding material is a mix of brass and steel (SUS 304), giving a balance of conductivity for grounding and mechanical strength for the mating interface.

Frequently asked questions

Where can I buy the 672983090 connector?

Submit a request for current pricing and availability — confirmed at quote time.

Is the 672983090 compatible with USB 3.0?

No — this is a USB 2.0 connector. The 8 contacts across 2 ports (4 per port) match the USB 2.0 pinout, not the 9-contact layout required for USB 3.0 SuperSpeed signaling.
