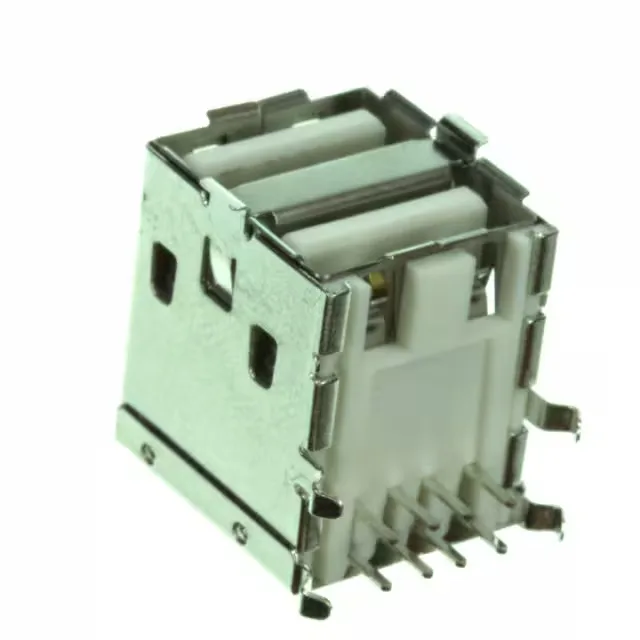

672984090 Molex USB-A Stacked Receptacle, 8 Contacts, R/A

MPN672984090
Active

Molex series 67298 USB-A (USB TYPE-A) stacked receptacle, 8 contacts, 2 ports, right-angle through-hole, shielded, gold contact finish, 1.5A, 30VDC, UL94 V-0, tray.

$1.95Ref. price · indicative, final on quote
672984090 datasheet
StockIn Stock (23)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

672984090 Technical Specifications
ParameterValue
Series67298
Mounting typeThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A), Stacked
Voltage - rated30VDC
Current rating1.5A
Positions8
Mounting featureHorizontal
Operating temperature0°C ~ 50°C
Insulation colorWhite
Shell (Shielding material)Brass, Steel (SUS 304)
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Contact finishGold
Number of ports2

Product details

Stacked USB-A for Space-Constrained I/O Panels

The Molex 672984090 is a stacked USB Type-A receptacle, packing two USB-A ports into a single right-angle through-hole package. It carries 8 contacts total — four per port — and is shielded with a brass and steel (SUS 304) shell to manage EMI at the board edge.

What the 1.5 A and 30 VDC Rating Means for Your Design

Rated 1.5 A per contact at 30 VDC, this connector is sized for USB 2.0 power delivery — 5 V at up to 1.5 A per port, which covers standard downstream ports and most charging profiles.

Right-angle through-hole mounting with board locks. The board locks provide mechanical retention during wave solder and resist shear force from cable insertion and removal.

Frequently asked questions

Where can I buy the Molex 672984090 USB-A stacked receptacle?

Submit an RFQ for your BOM quantity to receive a quote.

Is 672984090 RoHS compliant?

Yes, it is listed as ROHS3 Compliant.

Does 672984090 support USB 3.0?

No. The 672984090 is a USB Type-A stacked connector with 8 contacts total (4 per port), which matches the USB 2.0 pinout. USB 3.0 Type-A connectors require 9 contacts per port and are physically different.
