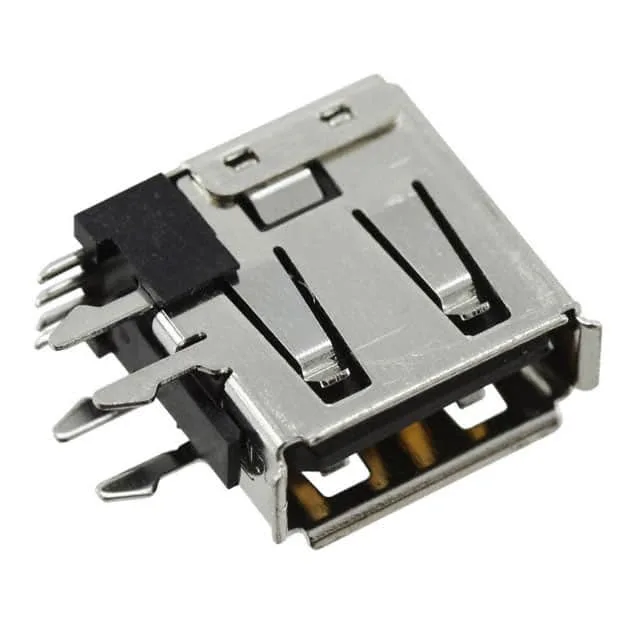

673298020 — Molex product photo
Molex

673298020 USB 2.0 Type-A Receptacle, 4-Pos, R/A, Shielded

MPN673298020
Active

Molex 67329 series USB 2.0 Type-A receptacle, 4 contacts, 1 A, right-angle through-hole, shielded, board lock, UL94 V-0.

$2.17Ref. price · indicative, final on quote
673298020 datasheet
StockIn Stock (14)
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

673298020 Technical Specifications
ParameterValue
Series67329
Mounting typeThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Current rating1A
Positions4
Mounting featureVertical
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB 2.0 Type-A Receptacle, 4 Positions, Right-Angle Mount

The Molex 673298020 is a USB 2.0 Type-A receptacle from the 67329 series, offering 4 contacts in a single-port, right-angle through-hole configuration. It carries a 1A current rating per the USB 2.0 specification, with gold-plated contacts for reliable repeated mating cycles. The shielded shell, made from copper alloy, and the integral board lock provide mechanical retention and EMI containment on the PCB edge.

Mounting and Shielding for Board-Edge Placement

This receptacle mounts through-hole with a right-angle orientation, designed to sit flush against the PCB edge for panel-mount USB ports.

Frequently asked questions

Is 673298020 a USB 2.0 connector?

Yes, the 673298020 is specified as a USB 2.0 Type-A receptacle, rated for 1A per the USB 2.0 standard.
