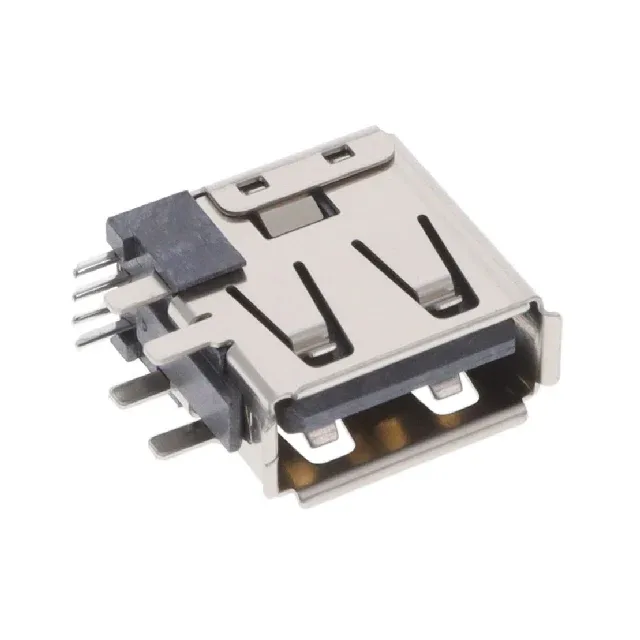

Molex 673298040 USB-A Receptacle, 4 Contacts

MPN673298040
Active

Molex 673298040 USB-A (USB TYPE-A) receptacle, 4 contacts, 1 port, through hole right angle, shielded, gold contact finish, USB 2.0, rated 1A at 30VDC, 1500 mating cycles.

$2.76Ref. price · indicative, final on quote
673298040 datasheet
StockIn Stock (30)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

673298040 Technical Specifications
ParameterValue
Mounting typeThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VDC
Current rating1A
Positions4
Mounting featureVertical
Insulation colorBlack
Shell (Shielding material)Copper Alloy
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB-A Receptacle for Panel or Board-Edge Mounting

It is a shielded, single-port connector with a vertical orientation relative to the board edge, making it suitable for panel-mount or board-edge applications where the cable plugs in from the side. The gold-plated contacts and USB 2.0 specification support reliable signal integrity for data and power delivery up to 1A at 30VDC.

Board Layout and Solder Termination

This connector uses through-hole solder termination, which provides a robust mechanical anchor to the PCB.

Durability and Contact Performance

Rated for 1500 mating cycles, the 673298040 is built for frequent plug/unplug duty typical of field-service terminals, test equipment, or user-facing ports. The shielded shell (copper alloy) provides EMI containment to meet radiated emissions limits.

Frequently asked questions

Is 673298040 available in tape and reel packaging?

Yes, the 673298040 is offered in Tape & Reel (TR) for automated assembly, as well as Cut Tape (CT) for smaller quantities.

Does 673298040 have a board guide feature?

Yes, the 673298040 includes a board guide feature to assist alignment during PCB assembly and reduce the risk of pin damage.

What is the contact finish on 673298040?

The 673298040 has a gold contact finish, providing corrosion resistance and reliable low-resistance connections over many mating cycles.

What are the alternatives to 673298040?

For a pin-compatible alternative, confirm the board footprint and mating half with the manufacturer's documentation before substituting.
