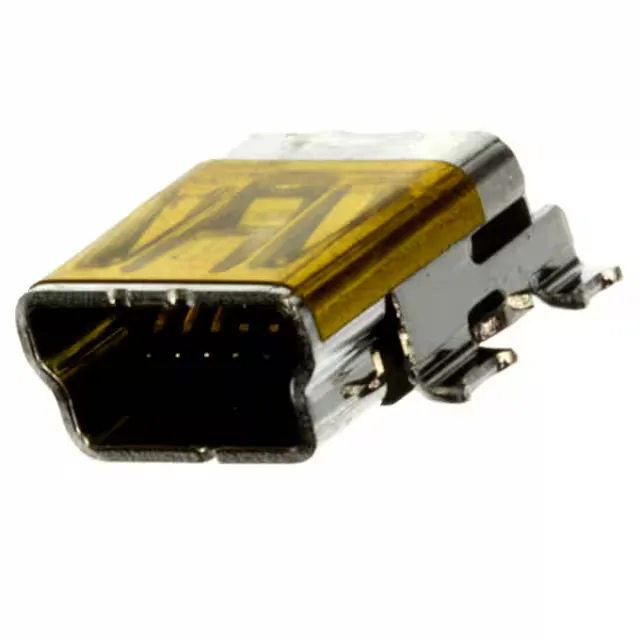

Molex 675031020 USB Mini B Receptacle, 5 Contacts

MPN675031020
Active

Molex 67503 series USB 2.0 mini B receptacle, 5 contacts, 1 A, 30 VAC/DC, SMD right angle, shielded, gold-plated contacts, UL94 V-0.

$1.2Ref. price · indicative, final on quote
675031020 datasheet
StockIn Stock (21)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

675031020 Technical Specifications
ParameterValue
Series67503
Mounting typeSurface Mount, Right Angle
Connector typeUSB - mini B
Voltage - rated30VAC/DC
Current rating1A
Positions5
Mounting featureHorizontal
Operating temperature0°C ~ 50°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide
ShieldingShielded
TerminationSolder
Contact finishGold
SpecificationsUSB 2.0 OTG
Number of ports1

Product details

It carries 5 contacts — the standard count for mini B — rated at 1 A per contact at 30 VAC/DC, which is the USB 2.0 power delivery ceiling. The shielded shell, made from copper alloy, provides the EMI containment needed to pass radiated emissions testing in consumer and industrial portable gear.

Mounting and Package Details

The package is offered in Tape & Reel and Cut Tape formats, which suits both automated pick-and-place assembly and small-run prototyping. A board guide feature is included to align the connector during reflow, reducing tombstoning risk on the 5 SMT pads.

The sibling 675031230 shares the same 5-contact USB mini B footprint, 1 A rating, and shielded SMD right-angle construction, but adds a solder retention feature. The 675031020 relies on the board guide for alignment; the 675031230's solder retention tabs provide additional mechanical hold against shear forces from cable strain. If your assembly sees repeated plug/unplug cycles or the board undergoes vibration testing, the 675031230's retention tabs are the safer call. For a fixed-installation device where the USB port is rarely cycled, the 675031020's board guide is sufficient.
