Molex 675031230

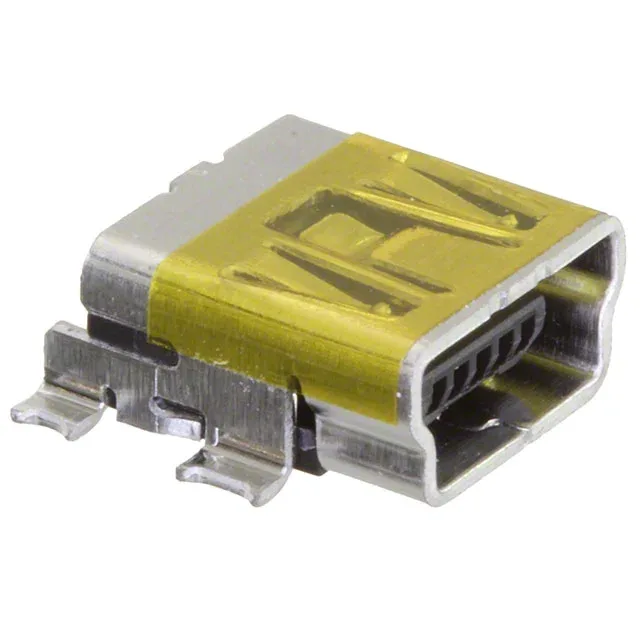

Molex 675031230 USB mini B Receptacle, SMD R/A, 5 contacts

MPN 675031230
Active

Molex 67503 series USB mini B receptacle, 5 contacts, SMD right-angle, shielded, 1 A, 30 VAC/DC, gold-plated contacts.

$1.48 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Series67503
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

675031230 key specifications
ParameterValue
Series67503
MountingSurface Mount, Right Angle
Connector typeUSB - mini B
Voltage - rated30VAC/DC
Current rating1A
Positions5
Mounting featureHorizontal
Operating temperature0°C ~ 50°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

675031230 additional specifications
ParameterValue
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
ShieldingShielded
TerminationSolder
Contact finishGold
SpecificationsUSB 2.0 OTG
Number of ports1

Product details

Rated at 1 A per port with a 30 VAC/DC voltage limit, this connector handles the power and signal requirements of a typical USB 2.0 interface — charging, data sync, and OTG negotiation. The gold-plated contacts resist corrosion through repeated mating cycles in field-service scenarios.

This is a surface-mount, right-angle receptacle — the contacts solder directly to pads on the board, and the connector body sits horizontal, parallel to the PCB surface. The right-angle orientation places the USB port at the board edge, which is the standard layout for a device enclosure's USB opening. The solder retention feature provides extra hold during the reflow process, preventing the part from shifting before the solder solidifies.

MPN
675031230
