USB-A Receptacle with Board Lock for Secure Panel Mounting

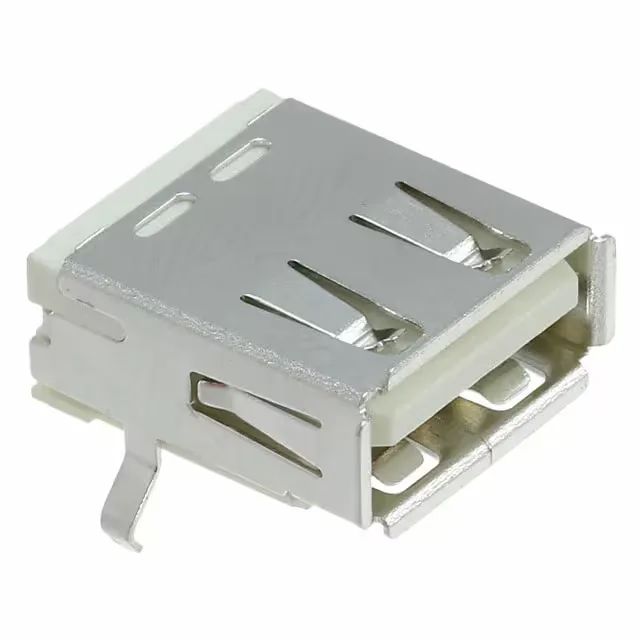

The Molex 676433910 is a shielded USB-A (USB TYPE-A) receptacle from the 67643 series, carrying 4 contacts in a single port. Rated at 30 VDC and 1.5 A per port, it delivers standard USB 2.0 power levels; anything above that rating requires a different connector or a USB-C PD implementation.
Right-Angle Orientation and Board Lock — Fit for the I/O Panel
The right-angle through-hole termination means the connector body sits flush against the PCB edge, with the USB port opening facing outward. The board lock is a pair of metal tabs that solder into plated through-holes, giving the connector a mechanical grip independent of the signal pins. Without those locks, the shear force from plugging and unplugging a USB cable would gradually fatigue the solder joints on the four signal pins.
Gold Contacts and Operating Range
That temperature envelope covers commercial and industrial indoor use — think control panels, test equipment, or point-of-sale terminals — but does not extend to automotive underhood or outdoor direct-exposure applications. The white insulation color is a visual identifier during assembly inspection.
Compliance and Sourcing
The 676433910 is ROHS3 compliant and carries an Active lifecycle status. It is supplied in tray packaging. For current pricing and availability, submit an RFQ — the part is sourced to order through independent distribution, with confirmed pricing and lead time at quote time.
